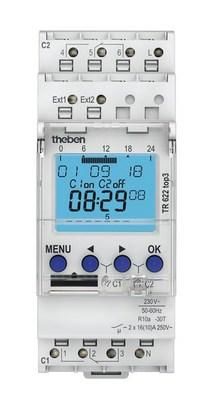

Theben 6220130 TR 622 top3 2 channels digital timer

Description

Features

Reviews

Digital timer for DIN rail, 2 channels, weekly program, 2 external inputs, 3 special programs, channel switching and channel locking, width 2 HP, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum protection against manipulation, timer programs can only be transferred from the app to the clock if the Bluetooth OBELISK top3 is plugged into the clock, 100% compatible with top2, 600 watt LED power, 800 amps/200 s inrush current, 0.4 watt standby power, DuoFix plug-in terminals, power reserve and programmed summer/winter time change, OBELISK interface for PC programming

Property	Value
Width in division units:	2
Number of channels:	2
Protection class (IP):	IP20
Supply voltage:	230 V
Power reserve in years:	10
Weekly program:	yes
Annual program:	no
Mounting type:	DIN rail
Type of supply voltage:	AC
Frequency of supply voltage:	50 to 60 Hz
Accuracy per day:	0.25 s
Text guidance in the display:	yes
24 h program:	yes
60 min program:	yes
Automatic summer/winter time change:	yes
Shortest switching time channel 1:	0.016 min
Holiday program:	yes
Pulse program:	yes
Cycle program:	yes
Astro program:	no
External button input:	yes
Random program:	yes
Operating hour counter:	yes
Quartz controlled:	yes
Radio controlled:	no
Shortest switching time channel 2:	0.016 min
Manual operation:	yes
Number of memory locations:	84
Switching preselection:	yes
Nominal switching current at 250 V AC:	16 A
Potential-free switching contact:	yes
Width:	35 mm
Height:	90 mm
Depth:	60 mm
External programming:	yes
Radio controlled (DCF77):	no
GPS:	no
With memory card:	yes
