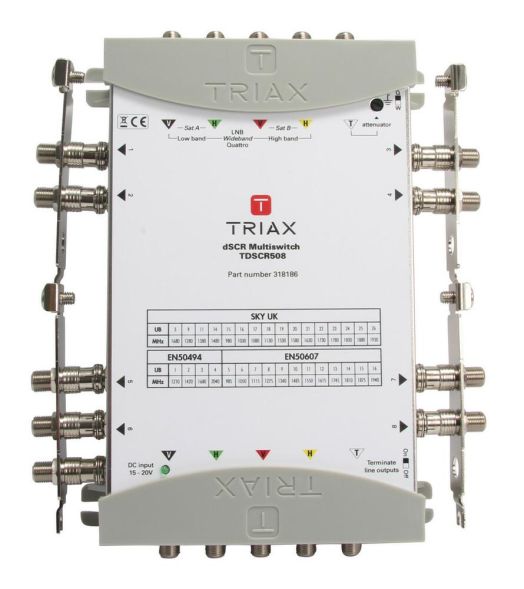

TdSCR 508 SCR/dCSS Unicable multiswitch. The TdSCR series consists of four Unicable multiswitches with 4, 8, 12 or 16 outputs (TdSCR 504/508/512/516). The Quattro and Wideband compatible devices can be cascaded and are therefore also suitable for the implementation of large multiswitch systems. 8 SCR/dSCR/Legacy outputs with up to 16 user bands per output, cascadable for the implementation of large multiswitch systems - Quattro and Wideband compatible. With Wideband LNB, implementation of 2 satellite positions possible, 1 terrestrial input for feeding in DVB-T2/FM/digital radio, level control for terrestrial signals (0-20 dB), uniform signal distribution with AGC at the outputs (only in SCR/dSCR operation), automatic detection of Legacy/dSCR. 1 DC input for power supply with external power supply (not included), 75 self-termination via setting switch (no terminating resistors required), can be used as a cascade, standalone or termination switch - including grounding rails and quick connectors, very low power consumption.
| Property | Value |
| Weight: | 1.25 |
| Weight unit: | KG |
| Number of inputs: | 5 |
| Subscriber connections: | 8 |
| Number of trunk outputs: | 5 |
| Cascadable: | yes |
| Power supply: | without |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| Terrestrial input: | active |
| LNB power supply: | 14 V / 18 V |
| Short description: | Unicable multiswitch, 5 inputs, 8 outputs with 16 user bands each - |
