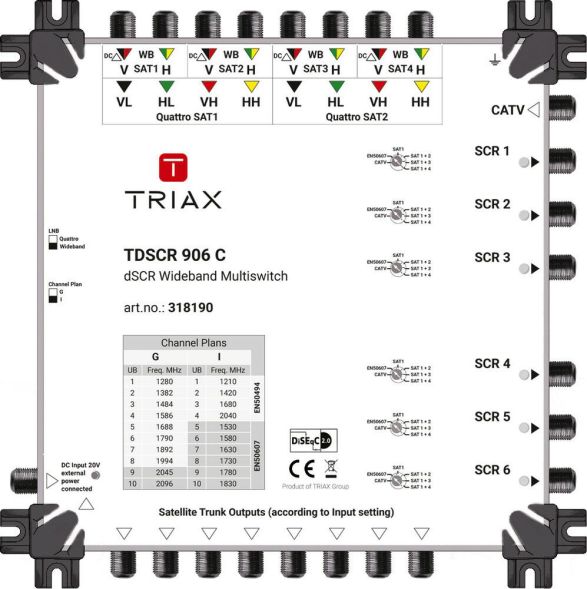

TdSCR 906 C SCR/dCSS Unicable multiswitch. The TdSCR 906 C was developed to support a wide range of new and existing multiswitch installations. The multiswitch can assign up to 10 user bands to each output and is compatible with all Unicable protocols. These include OLT, SCR, EN50494 and EN50607. All outputs are independent of each other to avoid possible interference caused by incorrectly configured end devices. The passive terrestrial input supports a frequency range of 5 to 1100 MHz and enables CATV/DOCSIS distributions, 8 cascadable LNB inputs for 2 universal Quattro LNBs or 4 wideband LNBs, 1 terrestrial input for CATV signals with return channel or other terrestrial signals (internally terminated), 6 SCR/dSCR outputs with 10 user bands each - uniform output level through AGC, 2 DC inputs, F-socket and 5.5/2.1mm jack plug
| Property | Value |
| Weight: | 1.39 |
| Weight unit: | KG |
| Number of inputs: | 9 |
| Subscriber connections: | 6 |
| Number of trunk outputs: | 8 |
| Cascadable: | yes |
| Power supply: | without |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| Terrestrial input: | active |
| LNB power supply: | 14 V / 18 V |
| Short description: | dSCR Unicable multiswitch, 9 inputs, 6 outputs with 10 user bands each - |
