High-quality multiswitch, particularly suitable for supplying several participants with a constant signal in the best possible quality. Level controls on the inputs and outputs. Thanks to the 22 kHz generator, suitable for Quatro and Quad LNBs. Low power consumption thanks to the integrated switching power supply. Level controls on all inputs, slope control on the terrestrial input. Terrestrial active/passive mode, suitable for CATV feed and distribution (5-862 MHz). color marking of the inputs.
| Property | Value |
| Weight: | 0.5 |
| Weight unit: | KG |
| Number of inputs: | 5 |
| Power supply: | built-in |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| 22 kHz generator: | yes |
| Subscriber connections: | 32 |
| Terrestrial input: | active |
| LNB power supply: | 14 V / 18 V / 22 kHz |

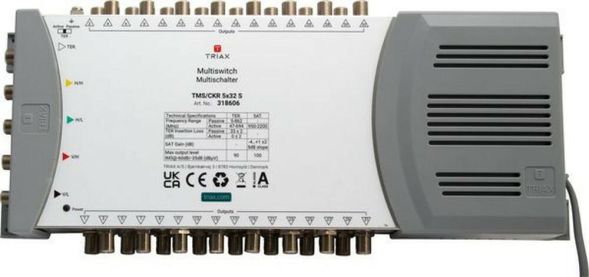

| Short description: | Pro-Line single multiswitch, 4 SAT + 1 terr. input, 32-way, with switching power supply, terr.active, with 22 kHz generator, LMS circuit 0/6/12 dB |
Features
Number of inputs
5
HAB
TMS/CKR PRO 5x32 S
Manufacturer
HAN
318612
GTIN
5702663186125
Weight
0,5
Weight unit
kg
Short description
Pro-Line single multiswitch, 4 SAT + 1 terr. input, 32-way, with switching power supply, terr.active, with 22 kHz generator, LMS circuit 0/6/12 dB
