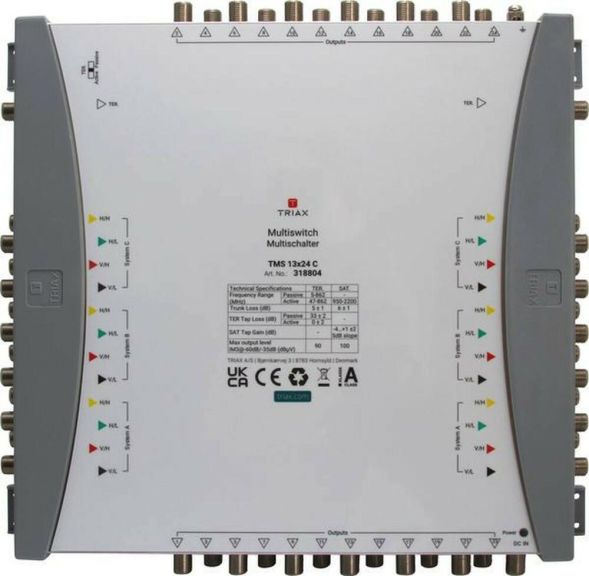

Cascade multiswitch for three satellite positions with 13 inputs and 24 outputs, suitable for the distribution of satellite and terrestrial signals. Simple and quick installation thanks to color-coding of all inputs/outputs and a compact, space-saving housing. Can be combined with all cascade modules of the TMS13 series via connectors. Terrestrial distribution optionally passive or active.
| Property | Value |
| Weight: | 1.72 |
| Weight unit: | KG |
| Number of inputs: | 13 |
| Cascadable: | yes |
| Power supply: | without |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| Subscriber connections: | 24 |
| Terrestrial input: | active |
| Number of trunk outputs: | 13 |
| LNB power supply: | 14 V / 18 V / 22 kHz |
| Brief description: | Cascade multiswitch 12 SAT + 1 terr. input, 24-way, ext. power supply, terr. active/passive |
Features
Number of inputs
13
HAB
TMS 13x24 C
Manufacturer
HAN
318804
GTIN
5702663188044
Weight
1,72
Weight unit
kg
Short description
Cascade multiswitch 12 SAT + 1 terr. input, 24-way, external power supply, terr. active/passive
