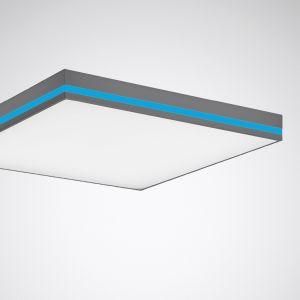

LED ceiling surface-mounted light with microprismatic cover, square. With four integrated LED panels. With blue light frame. With blue light frame. For mounting on ceilings and overhangs indoors. With highly efficient microprismatic CDP. Completely harmonious lighting effect thanks to evenly illuminated light output. Direct beam. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 thanks to limited luminance L 1500 cd/m2 for beam angles above 65° all around. Rated luminous flux 4000 lm, rated power 27.00 W, luminous efficacy of the light 148 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, The light source is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 620 mm x 620 mm, luminaire height 72 mm. Spring lock for convenient opening and installation. With all-round, exclusive light frame. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.5 kg. With electronic control gear, digitally dimmable (DALI). Operating device according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a button function via DALI control terminals (Touch DIM). The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Max. System power: | 27 W |
| Rated luminous flux according to IEC 62722-2-1: | 4000 lm |
| Suitable for number of lamps: | 1 |
| Length: | 620 mm |
| Width: | 620 mm |
| Height/depth: | 72 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | structured plastic |
| Light distributor: | other |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for Pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the lamp with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | >no|
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | yes |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 148 lm/W |
| Power factor: | 0.95 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 5 |
