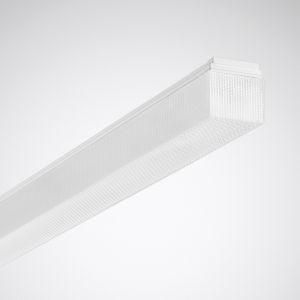

LED surface-mounted luminaires for ceiling and wall mounting. With clear PMMA cover, prismatic. Glare rating according to UGR classification (EN 12464-1) < 25. Secure hold of the cover thanks to internal spring locks. Rated luminous flux 2500 lm, rated power 22.00 W, luminaire luminous efficacy 113 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 35,000 h, average rated service life L70(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated in white (RAL 9016). Head pieces made of impact-resistant ABS. With cable duct integrated on the rear for cable routing with longitudinally offset wall outlet. Side cable entry in the head piece. Dimensions (L x W) 1234 mm x 111 mm, luminaire height 101 mm. Permissible ambient temperature (ta): -20 °C - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.6 kg. With electronic control gear, switchable. The operating device is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 19 W |
| Rated luminous flux according to IEC 62722-2-1: | 2500 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1234 mm |
| Width: | 111 mm |
| Height/depth: | 101 mm |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 3000 K |
| Impact resistance: | IK02 |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | Structured plastic |
| Light distributor: | other |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the lamp with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | >no|
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 132 lm/W |
| Power factor: | 0.9 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 3 |
