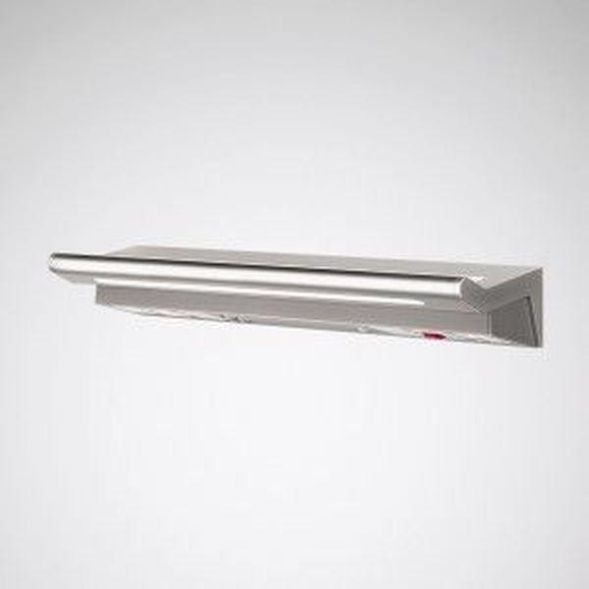

LED wall light with indirect-direct light distribution. With two 230 V protective contact sockets, two potential equalization bolts, Hospicall P3 call system for controlling reading and room light, an RJ45 data socket, two blank covers and a push button switch. The push button switch operates the lower, direct light output for the examination light. For direct wall mounting. The function channel can be folded down by 100° for easy electrical connection, with no visible screws. With direct-indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. With translucent PMMA cover panel. Harmonious lighting effect thanks to evenly illuminated light output. With 3 LED systems. Rated luminous flux 4400 lm, rated power 32.00 W, luminaire luminous efficacy 137 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of aluminum, upper cover made of sheet steel. Surface coated silver gray (RAL 9006). Dimensions (L x W): 190 mm x 700 mm, luminaire height 96 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK06, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 6.3 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Relay K1 for switching the direct reading light. Relay K2 for switching the indirect room light. Push button for switching the examination light. Wiring is done on site. The bed control unit is not included in the scope of delivery. The light can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 32 W |
| Rated luminous flux according to IEC 62722-2-1: | 4400 lm |
| Suitable for number of lamps: | 1 |
| Length: | 190 mm |
| Width: | 700 mm |
| Height/depth: | 96 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | Silver |
| Housing material: | Aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the permanently installed light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | transparent plastic |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | asymmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 138 lm/W |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 12 |
