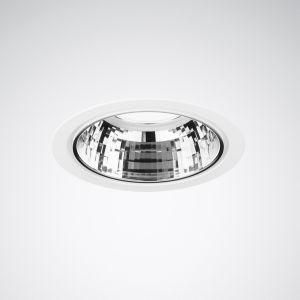

Round LED downlight with faceted aluminum reflector. Recessed downlight for sawn ceiling openings. Installation in cast concrete ceilings using accessories. Tool-free ceiling installation using quick-mounting springs. Suitable for installation in ceiling cutouts of Ø 210 mm - Ø 225 mm. In conjunction with a renovation ring as an optional accessory, ceiling openings up to Ø 260 mm are covered. Installation depth > 143 mm. Reflector made of anodized aluminum, faceted. Rated luminous flux 4200 lm, rated power 48.00 W, luminous efficacy 87 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 70,000 h, average rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Ceiling ring and heat sink made of die-cast aluminum. Surface coated white (RAL 9016). External dimensions of ceiling ring Ø 236 mm, luminaire height 143 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. In conjunction with a closed decorative cover, protection class IP54 is achieved on the room side. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 1.3 kg. With 5-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 48 W |
| Rated luminous flux according to IEC 62722-2-1: | 4200 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 236 mm |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| Installation height/depth: | 143 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 143 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 4200 lm |
| Cover material: | without |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | d>no|
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | yes |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Light emission: | direct |
| Energy efficiency class of the built-in lamp: | other |
| Total harmonic distortion (THD): | 14 |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Luminous intensity: | 3801 cd |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.95 |
| Number of poles: | 5 |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 88 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test in accordance with IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Colour consistency (McAdam ellipse): | SDCM3 |
