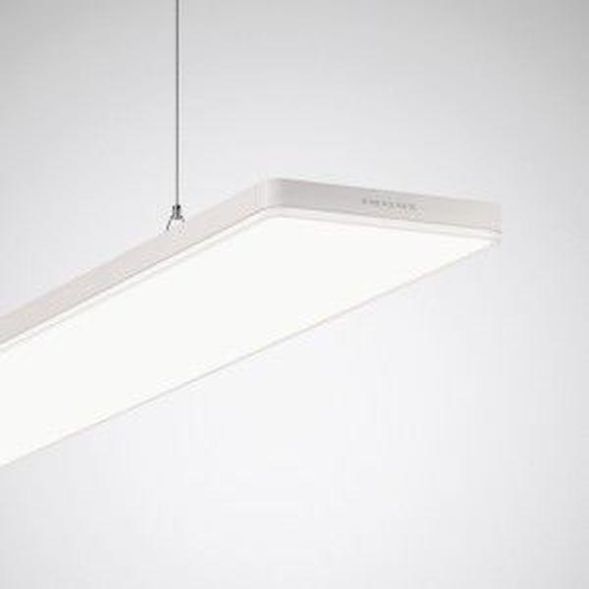

Exclusive rectangular LED pendant light with rounded corners and visible light edge. Pendant light for single light application. Suspended installation using Y-cable suspension included in delivery. With internal micro-prismatic CDP-I. Satin-finished PMMA cover panel with lateral light emission edge. Gentle lighting effect with absolutely no glare. With direct-indirect light distribution. Glare rating according to UGR classification (EN 12464-1) < 16. Suitable for computer workstations in accordance with EN 12464-1 Rated luminous flux 8300 lm, rated power 76.00 W, luminaire luminous efficacy 109 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L85 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Head pieces made of die-cast aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1500 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 10.5 kg. Rope suspension and electrical connection cable included in delivery. Standard pendant length: 1500 mm. With electronic control gear, digitally dimmable (DALI). The control gear is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Number of occupied DALI participants: 4. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated LiveLink Sensor IR Micro for connection to a LiveLink control unit for daylight-dependent control and presence detection. Connection and electrical supply via the DALI interface of the LiveLink control unit Occupies 2 DALI participants. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Max. System power: | 76 W |
| Rated luminous flux according to IEC 62722-2-1: | 8300 lm |
| Color temperature: | 3000 K |
| Length: | 1500 mm |
| Width: | 200 mm |
| Socket: | other |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 45 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 1500 mm |
| Operating device: | electronic transformer |
| Housing material: | aluminum |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With Operating device: | yes |
| Nominal voltage: | 230 V |
| Suspension included: | yes |
| Cover material: | plastic, structured |
| Light source: | LED not replaceable |
| Housing color: | white |
| Design of the grid: | without |
| Reflector: | without |
| Suitable for Light strip configuration: | no |
| Direct/indirect components separately controllable: | yes |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Energy efficiency class of the permanently installed light source: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Power factor: | 0.95 |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 5 |
| Connection type: | Plug-in terminal |
