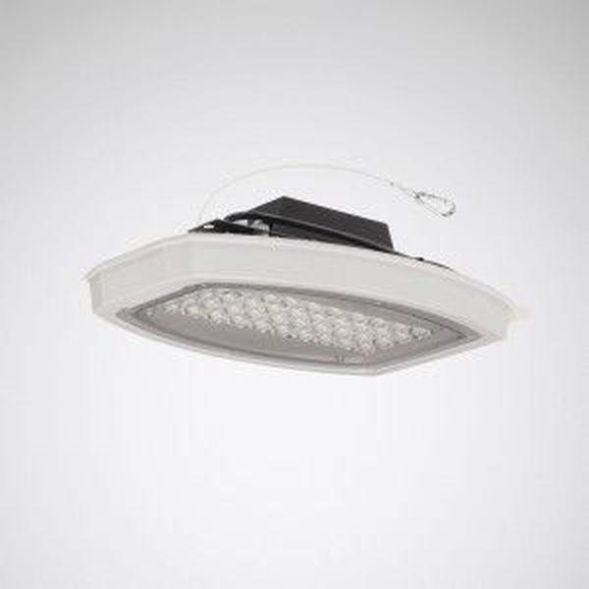

LED conversion kit for mast lights 9711... . Light with adjustable rated luminous flux. With power reduction via control phase. Switching off a control phase sets the luminous flux of the light to 50%. For easy and quick conversion of existing older-style lights into efficient LED MLT mast lights. Complete unit with LED system, control gear, optical system with cover and connection components. Tool-free assembly after removing and dismantling the existing components in accordance with the assembly instructions. Optical system designed in multi-lens technology (MLT). Light optics consisting of highly efficient, UV and temperature-resistant lens systems. With asymmetrical wide beam light intensity distribution. For lighting streets according to M5 and M6 lighting classes with a street width to light point height ratio of 0.4 to 0.8. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. LED module consisting of a die-cast aluminum housing with integrated LED and optical lens systems. Luminaire with adjustable rated luminous flux. The following information on the luminaire luminous flux and the system connected load refers to the operation of this luminaire with a 3-stage switch at the smallest adjustable value: Rated luminous flux 7500 lm, rated power 57.00 W, luminaire luminous efficacy 131 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM, other LED light colors available on request. Average rated service life LCLO (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Weight: 3.6 kg. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 6 kV. Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 62.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Length: | 392 mm |
| Width: | 275 mm |
| Height/depth: | 107 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 76 W |
| Rated luminous flux according to IEC 62722-2-1: | 9100 lm |
| Color temperature: | 4000 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 230 V |
| Housing color: | gray |
| Operating device: | electronic transformer |
| With light source: | yes |
| Light source: | LED not replaceable |
| Socket: | other |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Mounting type: | other |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With control gear: | yes |
| Adjustable optics: | no |
| Cover material: | transparent plastic |
| Housing material: | aluminum |
| Remote control: | without |
| Cable length: | 1 m |
| Constant luminous flux control: | yes |
| Light color: | white |
| With connection cable: | no |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | yes |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Without dimming function: | no |
| Energy efficiency class of the permanently installed lamp: | other |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Light distributor: | Focus lens |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Luminaire luminous efficacy: | 120 lm/W |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 3 |
| Connection type: | other |
