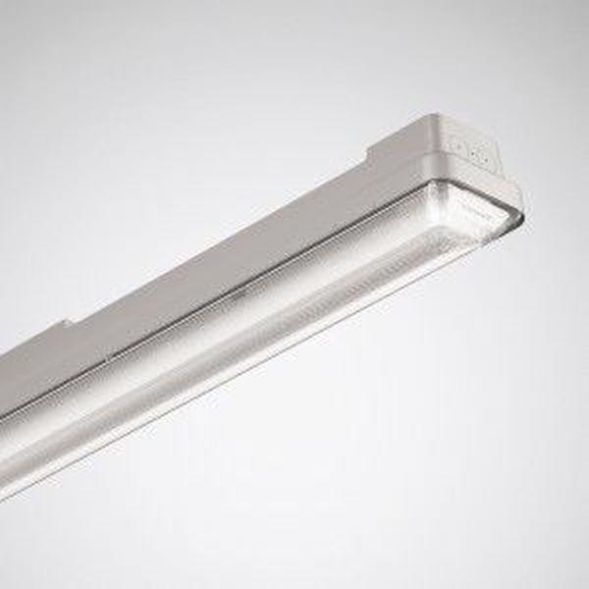

LED surface-mounted luminaire IP66 for damp rooms with PC luminaire body and PMMA diffuser. Advantageous when there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With limited surface temperature, suitable for use in fire-hazardous rooms in accordance with DIN EN 60598-2-24. With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling installation using the enclosed stainless steel mounting clip. Suspended installation possible using optional accessories. PMMA diffuser with internal prism structure. With symmetrical, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 4000 lm, rated power 28.00 W, luminaire luminous efficacy 142 lm/W. Light color daylight white, correlated color temperature (CCT) 6500 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1257 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.4 kg. With 5-pin connection terminal up to 2.5 mm2. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Max. System power: | 28 W |
| Rated luminous flux according to IEC 62722-2-1: | 4000 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1257 mm |
| Width: | 102 mm |
| Height/depth: | 91 mm |
| Protection rating (IP): | IP66 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Nominal voltage: | 230 V |
| Housing color: | grey |
| Housing material: | plastic |
| Color temperature: | 6500 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With operating device: | yes |
| Cover material: | Transparent plastic |
| Light distributor: | Focus lens |
| Without dimming function: | no |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 143 lm/W |
| Power factor: | 0.95 |
| Type of Wiring: | suitable for through wiring |
| Number of poles: | 5 |
