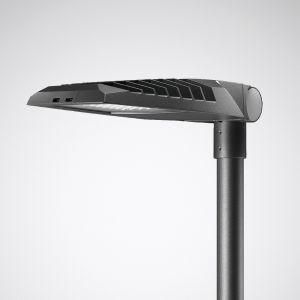

LED top-mounted and side-mounted luminaire. Size IQ 90 (960 x 325 mm). With intelligent label for quick access to luminaire information using a QR code. With SLR equipment (Smart Lighting Ready) for subsequent integration of components for light management systems. The standardized base according to Zhaga is attached to the top of the luminaire head. The luminaire is designed for the D4I standard and Zhaga / D4I certified. Top-mounted and side-mounted mounting on or at a mast spigot Ø 76 mm. Tilt angle 0°...90°, adjustable in 5° increments, scaled. Easily and quickly adjustable from top-mounted to side-mounted luminaire using a screw accessible from the outside. The mast is attached using two stainless steel fastening screws in accordance with EN 60598-2-3. Also suitable for mounting on masts with spigots Ø 42, 48 and 60 mm using reducers that can be ordered separately. Suitable mast on request. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical wide beam light distribution. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear / side shield is possible as an accessory to be ordered separately. Rated luminous flux 16500 lm, rated power 116.00 W, luminaire luminous efficacy 142 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 35 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. With closed side contour. Luminaire body anthracite powder-coated, similar to DB 703. With metallic effect, highly weather-resistant, powder-coated. Coating suitable for marine weather on request. Pivot point silver-gray, similar to RAL 9006, highly weather-resistant, powder-coated. Cover pane made of heat-treated toughened safety glass (ESG-H), transmission rate > 98%, sealed in a die-cast frame, can be folded down and removed without tools. Protection class (EN 61140): II, protection type (DIN EN 60529): IP66, impact resistance level according to IEC 62262: IK08. Mast available on request. Wind attack area fw 0.100 m2. Weight: 21.6 kg. With connected supply line. Length of supply cable 12 m. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 6 kV. Configurable ballast with constant luminous flux (CLO). Connected load at end of service life: 122.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Length: | 960 mm |
| Width: | 325 mm |
| Height/depth: | 200 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 122 W |
| Rated luminous flux according to IEC 62722-2-1: | 16500 lm |
| Color temperature: | 4000 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 220 to 240 V |
| Housing color: | anthracite |
| Operating device: | electronic transformer |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Socket: | other |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Mounting type: | Attachment/approach |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With control gear: | yes |
| Adjustable optics: | no |
| Cover material: | transparent glass |
| Housing material: | aluminum |
| Remote control: | without |
| Cable length: | 12 m |
| Constant luminous flux control: | yes |
| Light color: | white |
| With connection cable: | yes |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Energy efficiency class of the built-in lamp: | other |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Light distributor: | Focus lens |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -40 to 0 °C |
| Luminaire luminous efficacy: | 135 lm/W |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 3 |
| Connection type: | other |
