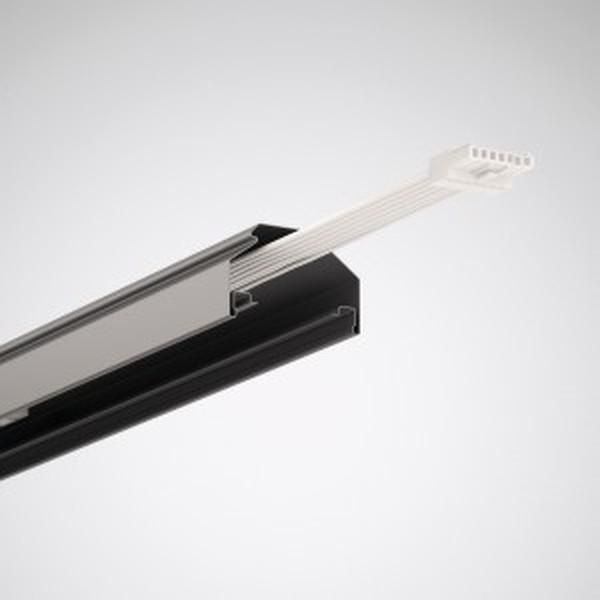

Support profile for E-Line 7651 Fix IP64 LED strip light individual lights or strip light terminations. For simplified installation, a pre-assembled strip light coupling for connection to another support profile is included in the scope of delivery. Length of the support profile: 2258 mm. With 7-wire through-wiring for dividing the circuits and additional 7-wire through-wiring to support additional applications in the area of emergency lighting or light management. With 1 isolating plug upper part for tool-free, electrical connection of the device carriers. With two 7-pin socket-plug pairs for quick electrical connection and touch-proof termination of the cable ends. The heat-resistant through-wiring is completely installed at the factory with all necessary components. All connections are designed as quick connections with reverse polarity protection. The support profile body is made of hot-dip galvanized sheet steel. The coating thickness of 20 m (Z 275 according to DIN EN 10346) ensures corrosion protection of up to 33 years when the support profile is used in environments corresponding to corrosivity category C3 according to DIN EN ISO 12944-2. Surface coated silver-gray.
| Property | Value |
| Version: | 1-length |
| Length: | 2258 mm |
| Width: | 79 mm |
| Height: | 50 mm |
| Color: | Silver |
| Cross-section of the wiring wires: | 4 mm² |
| Protection class (IP): | IP64 |
| Protection class: | I |
| Material: | Steel |
| Integrated electromechanical coupling: | no |
| With wiring: | yes |
| Number of wiring wires: | 14 |
| Variable device carrier spacing: | no |
| Suitable for cable tray: | no |
| With cable tray: | no |
| Electrical connection with plug system: | yes |
