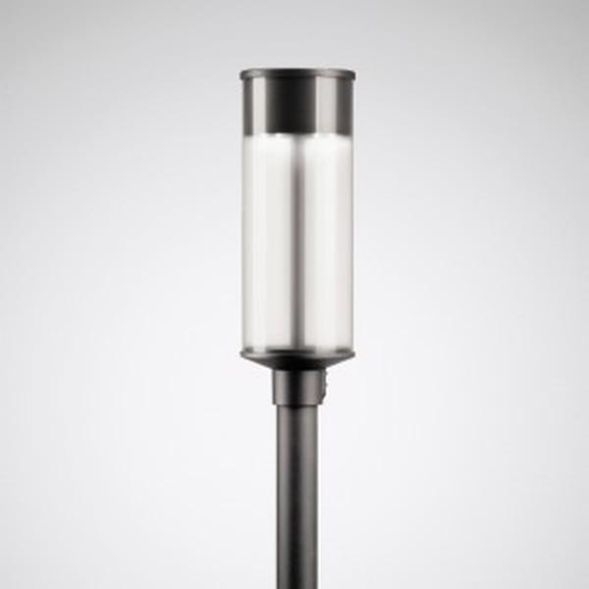

Decorative mast-top luminaire in cylinder shape. With intelligent label for quickly calling up luminaire information using a QR code. With power reduction via control phase. Switching off a control phase sets the luminaire luminous flux to 50%. Matching mast on request. In MLT design (multi-lens technology), consisting of highly efficient, UV and temperature-resistant lens systems in a quadruple arrangement. With asymmetrical wide-beam light distribution. For lighting streets according to P lighting classes. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. The subsequent installation of a rear / side shield is possible as an accessory that must be ordered separately. Rated luminous flux 2600 lm - , Rated power 22.00 W - 0.00 W, Luminaire luminous efficacy 118 lm/W - . Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 70. Color tolerance (initial MacAdam) 5 SDCM. Other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Luminaire roofs made of corrosion-resistant aluminum. Color anthracite, similar to DB703. Coating suitable for marine weather on request. Cover pan made of highly impact-resistant PMMA, translucent. Protection class (EN 61140): II, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK10. Mast available on request. Wind attack area fw 0, 110 m2. Weight: 6.5 kg. With mounted connection cable 6 m. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 23.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
| Property | Value |
| Height/depth: | 605 mm |
| Diameter: | 210.2 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 23 W |
| Rated luminous flux according to IEC 62722-2-1: | 2600 lm |
| Color temperature: | 3000 K |
| Suitable for spigot size: | 76 mm |
| Nominal voltage: | 230 V |
| Housing color: | anthracite |
| Operating device: | electronic transformer |
| With light source: | yes |
| Light source: | LED not replaceable |
| Socket: | other |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Mounting type: | Attachment |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With control gear: | yes |
| Adjustable optics: | no |
| Cover material: | transparent plastic |
| Housing material: | aluminum |
| Remote control: | without |
| Cable length: | 6 m |
| Constant luminous flux control: | yes |
| Light color: | white |
| With connection cable: | yes |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | yes |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Energy efficiency class of the built-in lamp: | other |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Light distributor: | Focus lens |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 35 °C |
| Luminaire luminous efficacy: | 113 lm/W |
| Power factor: | 0.9 |
| Wiring type: | Termination |
| Number of poles: | 3 |
| Conductor cross-section: | 1.5 mm² |
| Connection type: | other |
