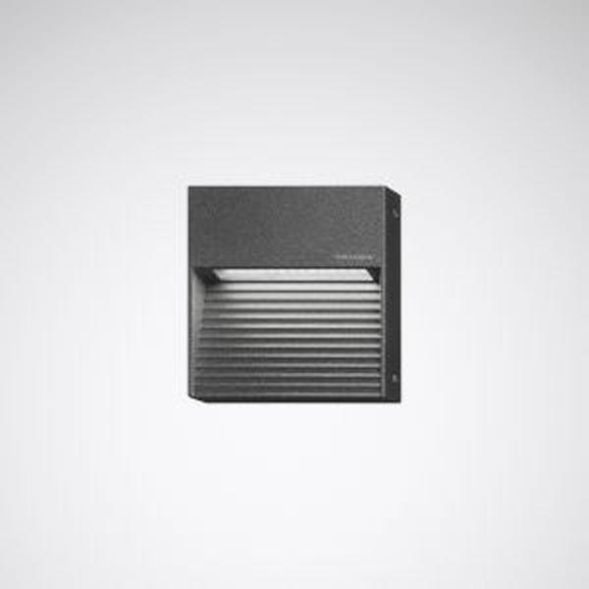

Design-oriented, very flat surface-mounted or recessed luminaire for coordinated lighting concepts indoors and outdoors. Luminaire with a square design. For surface mounting or using accessories ordered separately (Invego...BE concrete casting housing with fastening set) for flush installation indoors and outdoors. Rated luminous flux 182 lm, rated power 5.00 W, luminaire luminous efficacy 36 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 90. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80(tq 25 °C) = 50,000 h. Luminaire body made of die-cast aluminum. Cover plate made of tempered glass. High impact resistance. Color of luminaire body anthracite, similar to DB 703, powder-coated (DB 703). Dimensions (L x W): 105 mm x 105 mm, lamp height 28 mm. Protection class (EN 61140): III, protection type (DIN EN 60529): IP65, shock resistance according to IEC 62262: IK08. Weight: 1.1 kg. With connecting cable H05R-NF 2 x 1 mm2, length 900 mm. The lamp is supplied with power using an external control gear that must be ordered separately. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 5 W |
| Rated luminous flux according to IEC 62722-2-1: | 182 lm |
| Suitable for number of lamps: | 1 |
| Length: | 105 mm |
| Width: | 105 mm |
| Height/depth: | 28 mm |
| Protection rating (IP): | IP65 |
| Protection class: | III |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 24 V |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Color temperature: | 4000 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | DC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | Plug-in terminal |
| With control gear: | no |
| Cover material: | Structured plastic |
| Light distributor: | Focus lens |
| Installation height/depth: | 72 mm |
| Without Dimming function: | yes |
| Installation width: | 121 mm |
| Light emission: | direct |
| Light distribution: | asymmetrical |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Installation length: | 121 mm |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With louvers: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | without |
| Luminaire luminous efficacy: | 36 lm/W |
| Power factor: | 0.9 |
| Type of wiring: | Termination |
| Number of poles: | 2 |
