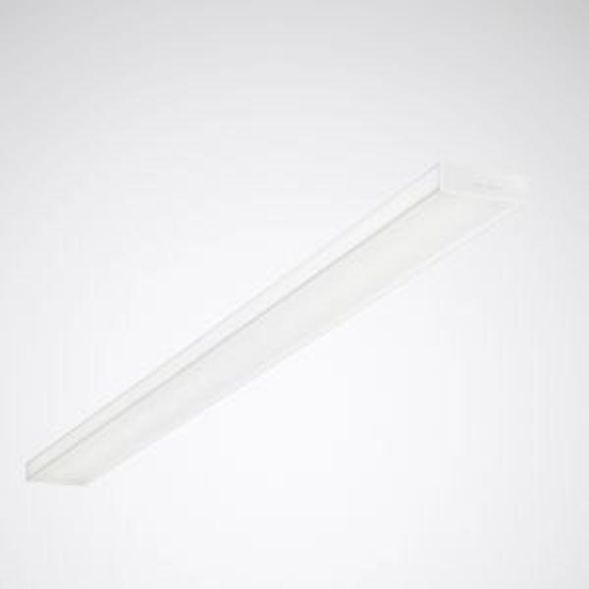

LED recessed luminaire for single or strip light applications. Luminaire with Active equipment for controlling the light colour using a separate control unit. For installation in sawn ceiling openings. With installation accessories to be ordered separately, also suitable for use in panel ceilings (SFlow ZBP L2). For panel ceilings in module 100. Continuous strip lights by connecting the luminaire bodies using tool-free assembly technology. With highly efficient CDP microprismatics. The microstructured PMMA prism surface of the optical system has a glare-reducing effect, is non-yellowing and does not cloud. Prism structure on the inside, surface of the cover smooth on the room side. With symmetrical deep-wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. LED system and luminaire optics can be snapped into the luminaire body as an assembly without tools. Assembly secured with a steel cable to prevent falling during assembly. The following information on the luminaire luminous flux and the system connected load refer to the operation of this luminaire with dynamically adjustable light color (HCL) in warm white light color operating mode (2700 K). Rated luminous flux 4000 lm, rated power 43.00 W, luminaire luminous efficacy 93 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Dimensions (L x W): 1473 mm x 100 mm, luminaire height 70 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.8 kg. Mains connection is made using plug-in terminals. The electrical connection of the components is automatic. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control device. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). With integrated LiveLink Sensor IR Micro for connection to a LiveLink control unit for daylight-dependent control and presence detection. Connection and electrical supply via the DALI interface of the LiveLink control unit. Occupies 2 DALI participants. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the follow-up time to the use of the room. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, detection squares presence max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 40 W |
| Rated luminous flux according to IEC 62722-2-1: | 4200 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1473 mm |
| Width: | 100 mm |
| Height/depth: | 70 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | no |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC |
| With motion detector: | yes |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With control gear: | yes |
| Cover material: | other |
| Light distributor: | other |
| Installation height/depth: | 45 mm |
| Without Dimming function: | no |
| Installation width: | 86 mm |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | yes |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for strip light configuration: | yes |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation length: | 1480 mm |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With louvers: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 105 lm/W |
| Power factor: | 0.95 |
| Number of poles: | 5 |
