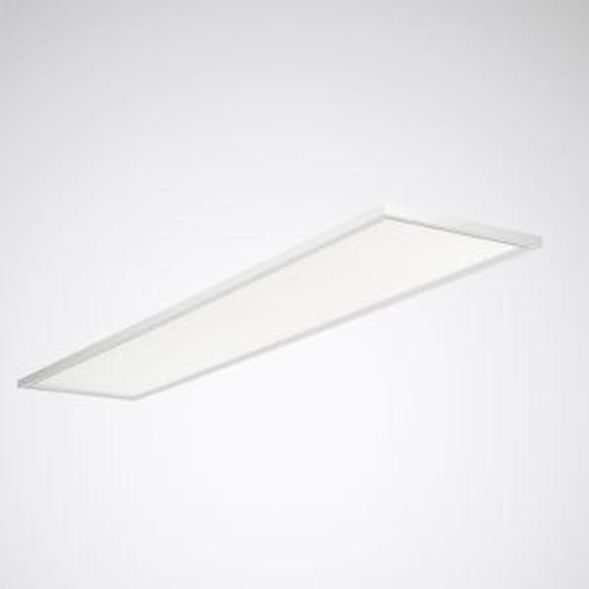

Trilux 7532740 ArimoFit M46 DW19 42-840 ET LED recessed light, white

Rectangular LED recessed luminaire with translucent cover panel DW. Version M46 (300 mm x 1200 mm). The luminaire can optionally be equipped with an emergency lighting system for ceiling installation with an emergency lighting operating time of 3 hours. In emergency light mode, the luminaire luminous flux is 500 lm. Creation of a deeper spatial effect. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). For system ceilings with visible support rails. The luminaire body is flush with the ceiling system on the room side. The Sky frame, which is optionally available as an accessory, creates a spatial atmospheric depth effect in the classic, flat modular ceiling, the 3-dimensional contour of a skylight is simulated. The optical system consists of a translucent, non-yellowing PMMA cover with a high degree of transmission. The surface of the cover is smooth and free of visible microprismatic structures. With deep-wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens according to EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Harmonious lighting effect due to evenly illuminated light emission. Individual design of the light emission surface (e.g. by printing) and other special solutions available on request. Rated power 31.00 W, Rated power 31.00 W, Luminaire luminous efficacy 135 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of extruded aluminum profile. Surface coated white (RAL 9016). The narrow flank profile is flush with the mounting rail. The luminaire frame is profiled in 3 dimensions to create a depth effect in the ceiling. Luminaire can be covered with insulation material at ta 25 °C, can also be used at ta35 °C without insulation material. Protection class (EN 61140): II, protection type (DIN EN 60529): IP20, protection type on the room side: IP40, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.4 kg. Reverse polarity protected quick connection with mains forwarding up to Ø 2.5 mm2. Connection of the ballast to the luminaire using a plug connection (plug and play). The packaging concept of the luminaire enables the operating device to be removed separately for pre-assembly, the other components of the luminaire remain protected until final assembly. With external operating device, switchable. The operating device is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Operating device is idle-proof and protected against incorrect connection, short circuits, overload and overtemperature. Output ripple of the operating device 4% for effective control of the LED system and flicker-free light. The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. The variety of applications of the product range is further underlined by variants in the area of luminous flux packages, light distribution curves and protection classes. On request, the basic range can be expanded to include project-specific luminaire features.
