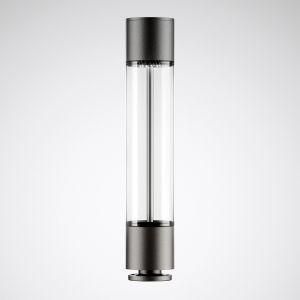

Luminaire head of the modular, decorative LED light column system. Version with clear PMMA cover. The column system is designed for use in areas of terrain category 1 to wind zone 4. For mounting on a compatible system standpipe. Compatible system standpipes available as a separate unit in various lengths and alternatively with a base plate or anchor piece. The steel standpipes have a diameter of 193.7 mm. Optical system designed using multi-lens technology (MLT). Luminaire optics consisting of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetrical, wide-beam light distribution. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Rated luminous flux 2200 lm, rated power 17.00 W, luminaire luminous efficacy 129 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM, other LED light colors available on request. Average rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum Ø 193.7 mm. Color anthracite, similar to DB703 with metallic effect, highly weather-resistant, powder-coated. (DB 703). Coating suitable for sea weather on request. Other colors and anti-graffiti coating on request. End cylinder made of PMMA, clear. Luminaire body can be rotated horizontally by 360 °. No screws are visible in the connection area between the standpipe and the luminaire head. A design gap visually underlines the modularity of the light column system. Protection class (EN 61140): II, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK05. Wind attack area fw 0.190 m2. Weight: 15.0 kg. Wired ready for connection with freely hanging electrical connection cable. Electrical connection to 5-pin connection terminal up to 2.5 mm2. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 6/10 kV. Parameterizable ballast with constant luminous flux (CLO). Connected load at end of life: 18.00 W. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the light is ENEC-certified by an independent testing center.
| Property | Value |
| Cover material: | transparent plastic |
| Housing color: | anthracite |
| Impact resistance: | IK05 |
| With light source: | yes |
| Protection class: | II |
| Light source: | LED not replaceable |
| Nominal voltage: | 220 to 240 V |
| Suitable for number of bulbs: | 1 |
| Diameter: | 193.7 mm |
| Socket: | other |
| Material of the housing: | aluminium |
| Protection class (IP): | IP65 |
| Type of lamp: | Stele |
| Operating device: | electronic transformer |
| Rated luminous flux according to IEC 62722-2-1: | 2200 lm |
| Color temperature: | 4000 K |
| Color rendering index CRI: | 70-79 |
| Light color: | white |
| With control gear: | yes |
| With motion detector: | no |
| With light sensor: | no |
| Voltage type: | AC |
| With base plate: | no |
| Surface: | powder-coated |
| Light distributor: | focus lens |
| Energy efficiency class of the built-in lamp: | other |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Protection class (NEMA): | other |
| Max. System power: | 18 W |
| Power factor: | 0.9 |
| Height/depth: | 1044 mm |
| Type of wiring: | Termination |
| Number of poles: | 4 |
| Connection type: | other |
