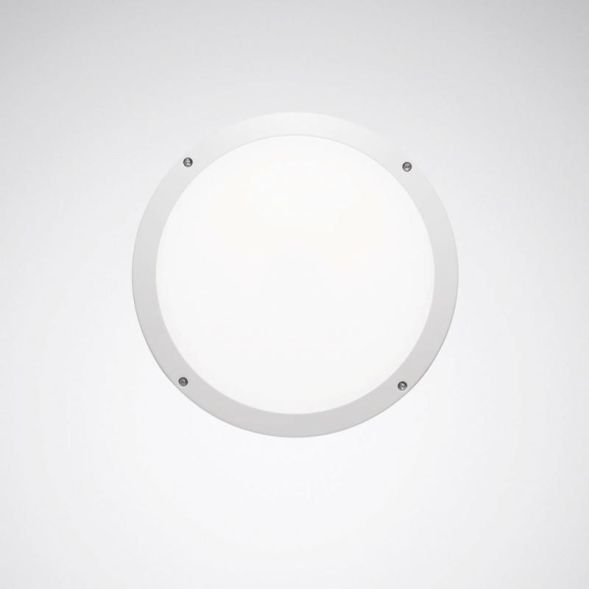

Round, decorative LED surface-mounted luminaire for wall and ceiling mounting with protection class IP65. Thanks to its optical and technical design features, the wall luminaire's design language harmonizes with other luminaires that can be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian luminous intensity distribution. LED system with adjustable luminaire luminous flux and adjustable light color via DIP switch. The LED system forms a firmly connected unit with the luminaire cover and can be replaced. Rated luminous flux 900 lm / 1350 lm, connected load: 9.00 W / 13.00 W, selectable color temperature: 3000 / 4000 K, general color rendering index (CRI) Ra > 85. Color location tolerance (initial MacAdam) 3 SDCM. Average rated service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Cover made of highly impact-resistant PMMA, opal. Surface coated in white. (RAL 9010). Luminaire diameter 265 mm, luminaire height 75 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, protection type lamp compartment: IP65, shock resistance level according to IEC 62262: IK10. Weight: 1.8 kg. With 3-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 9 W |
| Rated luminous flux according to IEC 62722-2-1: | 900 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 75 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing material: | Aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK10 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Outer diameter: | 265 mm |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | opal plastic |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for built-in installation: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the lamp with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Dimming depending on the operating device: | no |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 100 lm/W |
| Power factor: | 0.9 |
| Type of wiring: | Termination |
| Number of poles: | 3 |
