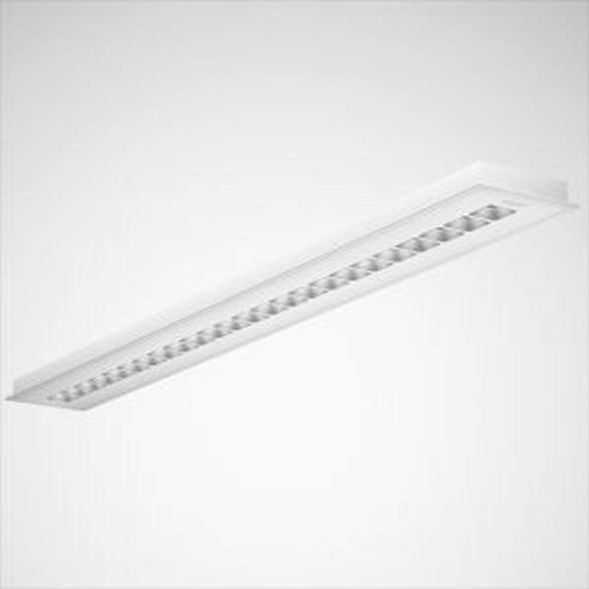

Rectangular LED recessed ceiling luminaire with light elements made of lens systems and cubic shielding elements and high efficiency. Version M39 (185 mm x 1550 mm). Luminaire with Bluetooth low energy transmitter module (beacon) for compatible systems. The integrated beacon box is the basis for using the location-based services offered by TRILUX. The service enables the location and positioning of objects and people with a suitable smartphone, for example to automatically provide location-related information. For use in system ceilings with visible support rails and, in conjunction with an accessory that must be ordered separately, also for installation in system ceilings with concealed support rails and sawn ceiling openings (370/1N / Creavo fastening system). Installation in sawn openings using mounting accessories requires a ceiling material thickness of 18 mm - 40 mm. Further information and data on luminaire installation and fastening can be found in the installation instructions. The optical system with a precisely coordinated combination of LED lenses and anti-glare elements ensures very high visual comfort with very high lighting performance. With symmetrical, deep-wide light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. With 24 light elements, rectangular (1 x 24). Rated luminous flux 5300 lm, rated power 33.00 W, luminaire luminous efficacy 160 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 100,000 h, average rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, white powder-coated (RAL 9016). Anti-glare cubes silver-gray, with fine surface structure (RAL 7001). Dimensions (L x W): 1547 mm x 184 mm, luminaire height 90 mm. The anti-glare cubes can be made in other RAL colors on request. The color of the anti-glare cubes has no relevant influence on the lighting characteristics of the luminaire. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 8.5 kg. Luminaires equipped with Linect® luminaire connection system. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Control gear is idle-proof and protected against incorrect connection, short circuit, overload and overtemperature. Output ripple of the control gear 4% for effective control of the LED system and flicker-free light. The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires that are coordinated in appearance. Project-specific versions with varying luminaire features are available on request.
| Property | Value |
| Max. System power: | 33 W |
| Rated luminous flux according to IEC 62722-2-1: | 5300 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1547 mm |
| Width: | 184 mm |
| Height/depth: | 90 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | other |
| Light distributor: | Focus lens |
| Installation height/depth: | 160 mm |
| Without dimming function: | no |
| Installation width: | 167 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation length: | 1530 mm |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 161 lm/W |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 5 |
