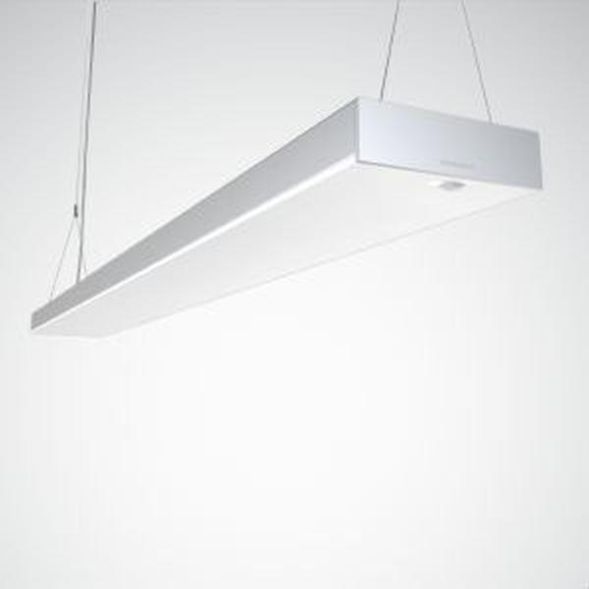

Rectangular LED pendant luminaire, direct-indirect distribution, with full-surface, rimless PMMA cover. For single or light strip applications using accessories to be ordered separately. Suitable for through-wiring. With an internal microprismatic cover panel and a smooth, opal PMMA cover on the room side. With symmetrical, wide-beam light distribution, direct-indirect (70/30%). Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Minimum luminaire luminous flux 5700 lm, rated power 48.00 W. Maximum luminaire luminous flux, rated power 0.00 W. Luminaire luminous efficacy 118 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, silver-gray powder-coated (RAL 9006). Dimensions (L x W): 1408 mm x 160 mm, luminaire height 47 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.1 kg. With electronic control gear, digitally dimmable (DALI). Control gear in accordance with DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. With integrated LiveLink WiFi control unit and LiveLink Sensor IR Micro for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink Sensor for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the switch-off time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Temperature range -25 °C - +55 °C. Integrated pyro sensor for the highest detection quality with 168 detection zones. A presence area of 16 m2 enables the detection of the smallest movements. Square detection, detection squares presence max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 48 W |
| Rated luminous flux according to IEC 62722-2-1: | 5700 lm |
| Color temperature: | 4000 K |
| Length: | 1408 mm |
| Width: | 160 mm |
| Socket: | other |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 47 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 2000 mm |
| Operating device: | electronic transformer |
| Housing material: | plastic |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With Operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | no |
| Cover material: | matt/satin plastic |
| Light source: | LED not replaceable |
| Housing color: | silver |
| Design of the grid: | without |
| Suitable for light strip configuration: | yes |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming Phase control: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Energy efficiency class of the built-in light source: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Power factor: | 0.95 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 5 |
| Connection type: | Plug-in terminal |
