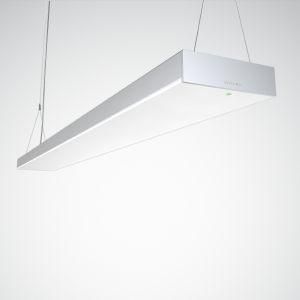

Rectangular LED pendant light, direct-indirect beam, with full-surface, rimless PMMA cover. With integrated carbon dioxide sensor for measuring the CO2 concentration in the ambient air and a 3-stage LED traffic light to indicate air quality and the need for ventilation. The measuring ranges of the LED indicators are based on the recommendations of the Federal Environment Agency for reducing the risk of transmission of SARS-CoV-2 indoors through suitable ventilation measures: Green < 800 ppm, yellow 800 - 1400 ppm, red > 1400 ppm CO2 concentration. For single or light strip applications using accessories to be ordered separately. Suitable for through-wiring. With an internal microprismatic cover panel and a smooth, opal PMMA cover on the room side. With symmetrical wide beam light distribution, direct-indirect (70/30%). Glare assessment according to UGR classification (EN 12464-1) < 19. Screen-compatible according to EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Minimum luminaire luminous flux 5700 lm, rated power 47.00 W. Maximum luminaire luminous flux, rated power 0.00 W. Luminaire luminous efficacy 121 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, silver-grey powder-coated (RAL 9006). Dimensions (L x W): 1408 mm x 160 mm, luminaire height 47 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 5.1 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 47 W |
| Rated luminous flux according to IEC 62722-2-1: | 5700 lm |
| Color temperature: | 4000 K |
| Length: | 1408 mm |
| Width: | 160 mm |
| Socket: | other |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 47 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 2000 mm |
| Operating device: | electronic transformer |
| Housing material: | plastic |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With Operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | no |
| Cover material: | matt/satin plastic |
| Light source: | LED not replaceable |
| Housing color: | silver |
| Design of the grid: | without |
| Suitable for light strip configuration: | yes |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming Phase control: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Energy efficiency class of the built-in light source: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Power factor: | 0.95 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 5 |
| Connection type: | Plug-in terminal |
