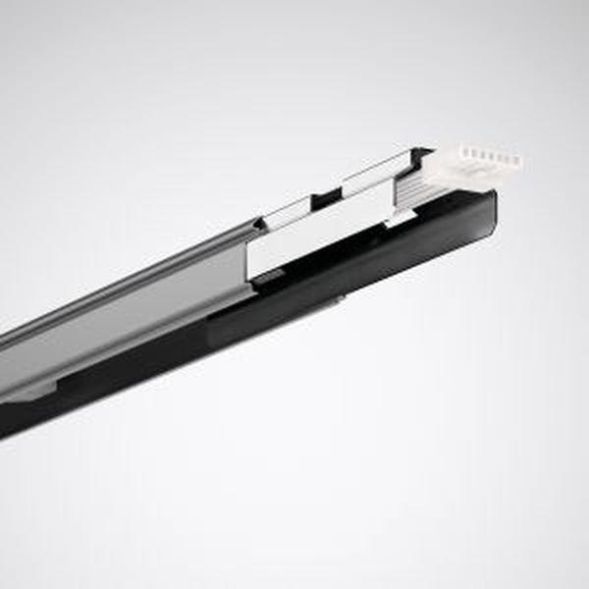

Support profile for E-Line 7651 Fix strip light applications. For simplified installation, a pre-assembled strip light coupling for connection to another support profile is included in the scope of delivery. Length of the support profile: 2950 mm. With 7-conductor through-wiring. Cable cross-section 2.5 mm2. With 2 isolating plug tops for tool-free, electrical connection of the device carriers, each 1500 mm apart. With 7-pin socket plug pair for quick electrical connection and touch-proof termination of the cable ends. The heat-resistant through-wiring is completely installed at the factory with all necessary components. All connections are designed as quick connections with reverse polarity protection. The power can be fed in without accessories through an upper breakout opening (M20/PG13.5). The support profile body is made of hot-dip galvanized sheet steel.
| Property | Value |
| Design: | 2-length |
| Length: | 2950 mm |
| Width: | 63 mm |
| Height: | 41 mm |
| Color: | Silver |
| Cross-section of the wiring wires: | 2.5 mm² |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Material: | Steel |
| Integrated electromechanical coupling: | yes |
| With wiring: | yes |
| Number of wiring wires: | 7 |
| Variable device carrier spacing: | no |
| Suitable for cable tray: | no |
| With cable tray: | no |
| Electrical connection with plug-in system: | yes |
