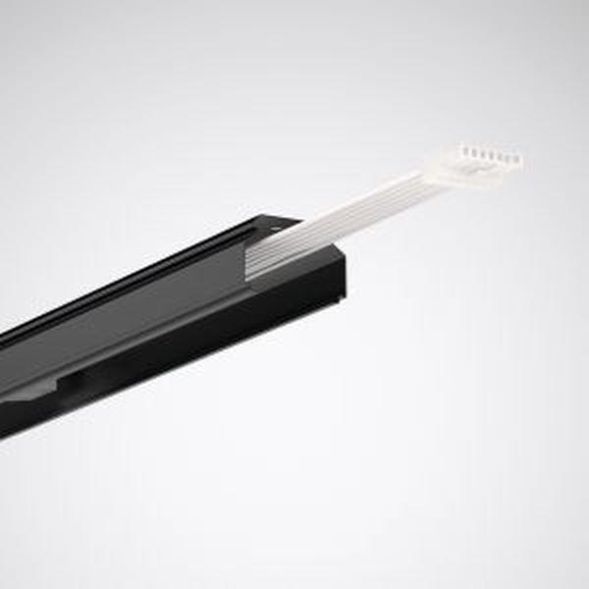

Support profile for E-Line 7651 Fix LED strip light individual lights or strip light terminations. In combination with a strip light coupling (ordered separately), also suitable for strip light applications. Length of support profile: 2212.5 mm. With 7-conductor through-wiring. Cable cross-section 2.5 mm2. With 1 isolating plug upper part for tool-free, electrical connection of the device carriers. With 7-pin socket plug pair for quick electrical connection and touch-proof termination of the cable ends. The heat-resistant through-wiring is completely installed at the factory with all necessary components. All connections are designed as quick connections with reverse polarity protection. The power can be fed in without accessories through an upper breakout opening (M20/PG13.5). The support profile body is made of hot-dip galvanized sheet steel. Surface coated black. Packaging unit 4 pieces.
| Property | Value |
| Design: | 1-length |
| Length: | 2213 mm |
| Width: | 63 mm |
| Height: | 41 mm |
| Color: | black |
| Cross-section of the wiring wires: | 2.5 mm² |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Material: | Steel |
| Integrated electromechanical coupling: | no |
| With wiring: | yes |
| Number of wiring wires: | 7 |
| Variable device carrier spacing: | no |
| Suitable for cable tray: | no |
| With Cable tray: | no |
| Electrical connection with plug system: | yes |
