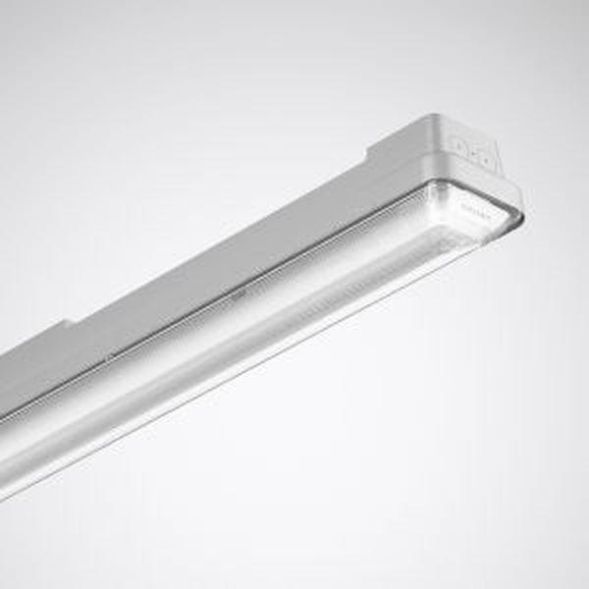

LED damp-proof surface-mounted luminaire IP66 with PC luminaire body and PC diffuser. Advantageous when there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling mounting using the enclosed stainless steel mounting clip. Suspended mounting possible using optional accessories. PC diffuser with internal prism structure. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 2000 lm, rated power 16.00 W, luminaire luminous efficacy 125 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 695 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 1.2 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The luminaire is suitable for operation on a 230V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 16 W |
| Rated luminous flux according to IEC 62722-2-1: | 2000 lm |
| Suitable for number of lamps: | 1 |
| Length: | 695 mm |
| Width: | 102 mm |
| Height/depth: | 91 mm |
| Protection rating (IP): | IP66 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | gray |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | without cover |
| Light distributor: | Focus lens |
| Without dimming function: | no |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming depending on operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 125 lm/W |
| Power factor: | 0.97 |
| Number of poles: | 5 |
