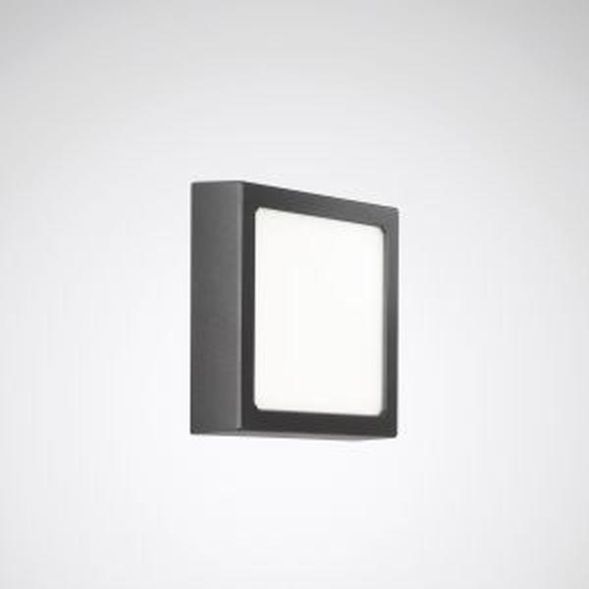

Square, decorative LED surface-mounted luminaire for wall and ceiling mounting. The wall luminaire's optical and technical design features harmonize in its design language with other luminaires that can be used in the project. Can also be used holistically inside the building. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian luminous intensity distribution. LED system with adjustable luminaire luminous flux and adjustable light color via DIP switch. The LED system forms a firmly connected unit with the luminaire cover and can be replaced. Rated luminous flux 1210 lm / 1300 lm, selectable color temperature: 3000 / 4000 K, color location tolerance (initial MacAdam) 4 SDCM. Average rated service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of die-cast aluminum. Cover made of highly impact-resistant PMMA, opal. Color anthracite, similar to DB703 with metallic effect, highly weatherproof, powder-coated. (DB 703). Dimensions (L x W): 260 mm x 260 mm, luminaire height 72 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK10. Weight: 2.1 kg. With 5-pin connection terminal up to 2.5 mm2 for mains connection and mains forwarding With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 17 W |
| Rated luminous flux according to IEC 62722-2-1: | 1210 lm |
| Suitable for number of lamps: | 1 |
| Length: | 260 mm |
| Width: | 260 mm |
| Height/depth: | 72 mm |
| Protection rating (IP): | IP65 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | anthracite |
| Color temperature: | 3000 to 4000 K |
| Impact resistance: | IK10 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in light source: | other |
| Voltage type: | AC/DC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 25 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With louvers: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 71 lm/W |
| Power factor: | 0.9 |
| Wiring type: | Termination |
| Number of poles: | 4 |
