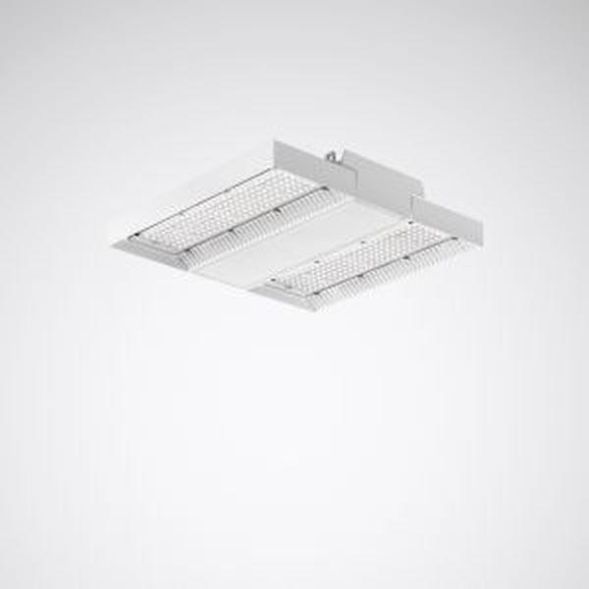

Robust LED high bay spotlight. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D code). Suitable for ceiling mounting and suspended mounting using optional accessories. With deep beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 22. Rated luminous flux 17000 lm, rated power 101.00 W, luminaire luminous efficacy 168 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L85(tq 50 °C) = 50,000 h, average rated service life L80(tq 50 °C) = 70,000 h. Robust die-cast aluminum body with integrated cooling fins. Surface coated white (RAL 9016). Dimensions (L x W): 320 mm x 342 mm, luminaire height 63 mm. Weight: 3.8 kg. Permissible ambient temperature (ta): -30 °C - +50 °C. Protection class (EN 61140): I, Protection type (DIN EN 60529): IP65, Shock resistance level according to IEC 62262: IK08, Test temperature glow wire test according to IEC 60695-2-11: 850 °C. With 5-pin connecting cable 5 x 0.75 mm2 (1500 mm). With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 99 W |
| Rated luminous flux according to IEC 62722-2-1: | 16400 lm |
| Protection class: | I |
| Impact resistance: | IK08 |
| Protection class (IP): | IP65 |
| Housing color: | white |
| Color temperature: | 4000 K |
| Suitable for number of bulbs: | 1 |
| Light source: | LED not replaceable |
| Length: | 320 mm |
| Width: | 342 mm |
| Height/depth: | 63 mm |
| Socket: | other |
| With light source: | yes |
| Operating device: | electronic transformer |
| Nominal voltage: | 220 to 240 V |
| Beam angle: | narrow beam 11-20° |
| DALI dimming: | yes |
| Light color: | white |
| With control gear: | yes |
| Voltage type: | AC |
| Suitable for emergency lighting: | no |
| Housing material: | aluminium |
| With protective cover: | no |
| Ball-proof: | no |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Color rendering index CRI: | 80-89 |
| Light distribution: | symmetrical |
| Suitable for secondary lamps: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming leading edge: | no |
| Dimming leading edge: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Focus lens |
| Energy efficiency class of the permanently installed lamp: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Rated ambient temperature according to IEC62722-2-1: | -30 to 50 °C |
| Power factor: | 0.95 |
| Wiring type: | Termination |
| Number of poles: | 5 |
| Connection type: | other |
