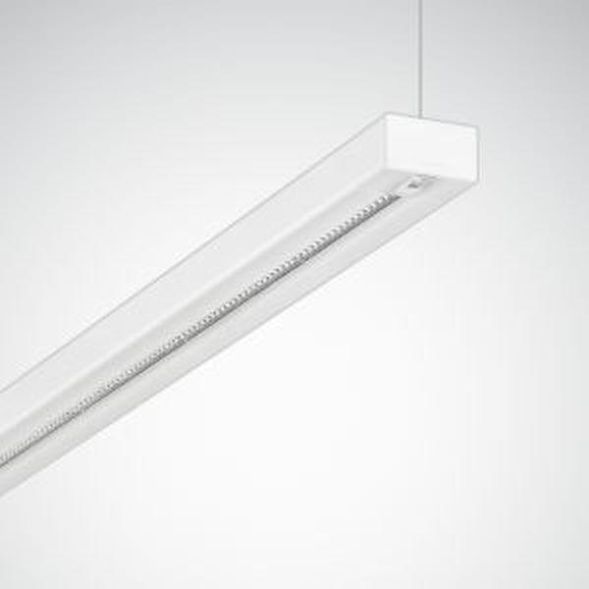

LED pendant light for single or strip light applications. Light with Active equipment for controlling the light color using a separate control unit. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight-dependent control and presence detection as well as WLAN module for secure commissioning and operation (WPA2 encryption). Predefined room configurations (use cases) with all planning-relevant data enable simple and quick commissioning. Control of up to 64 DALI participants. Commissioning is carried out using the LiveLink Install commissioning app for tablet PCs. LiveLink Sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function when there is sufficient daylight. Passive infrared presence sensor, with highly sensitive multi-segment pyro sensors, with adjustable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatically adjusting the run-on time to the use of the room. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI participants. Square detection, presence detection squares max. 4 mx 4 m (16 m2) / radial max. 4 mx 4 m (16 m2) / tangential max. 6 mx 6 m (36 m2) with a recommended mounting height of 2.8 m, permissible mounting height 2.5 m to 4 m. For suspended mounting. As a single light or in light strip application. Optical system in micro reflector technology (MRX) with highly efficient, aluminum-coated reflector chambers made of plastic for high glare control and efficiency. Discreet lateral light output over the entire length of the light. With direct-indirect light distribution. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 1500 cd/m2 for beam angles above 65° all around. The following information on the luminaire luminous flux and the system connected load refers to the operation of this luminaire with dynamically adjustable light color (HCL) in the warm white light color operating mode (2700 K). Rated luminous flux 5500 lm, rated power 51.00 W, luminaire luminous efficacy 107 lm/W. Light color variable (warm white - daylight white), correlated color temperature (CCT) variable (2700 K - 6500 K), general color rendering index (CRI) Ra > 80. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. (RAL 9016). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 45 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.6 kg. With electronic control gear for switching, dimming and controlling the light color using a DALI Device Type 8 capable control unit. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 48 W |
| Rated luminous flux according to IEC 62722-2-1: | 5500 lm |
| Color temperature: | 4000 K |
| Length: | 1473 mm |
| Width: | 84 mm |
| Socket: | other |
| Suitable for number of bulbs: | 1 |
| Height/depth: | 45 mm |
| Protection type (IP): | IP20 |
| Protection class: | I |
| Pendant length: | 2000 mm |
| Operating device: | electronic transformer |
| Housing material: | steel |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| With operating device: | yes |
| Nominal voltage: | 220 to 240 V |
| Suspension included: | no |
| Light source: | LED not replaceable |
| Housing color: | white |
| Grid design: | high gloss |
| Suitable for light strip configuration: | yes |
| Direct/indirect components separately adjustable: | no |
| Light distribution: | symmetrical |
| Light emission: | direct/indirect |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | n on|
| Dimming programmable: | no |
| Dimming DSI: | no |
| Dimming RF: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | other |
| Energy efficiency class of the built-in light source: | other |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Power factor: | 0.95 |
| Number of poles: | 5 |
| Connection type: | Plug-in terminal |
