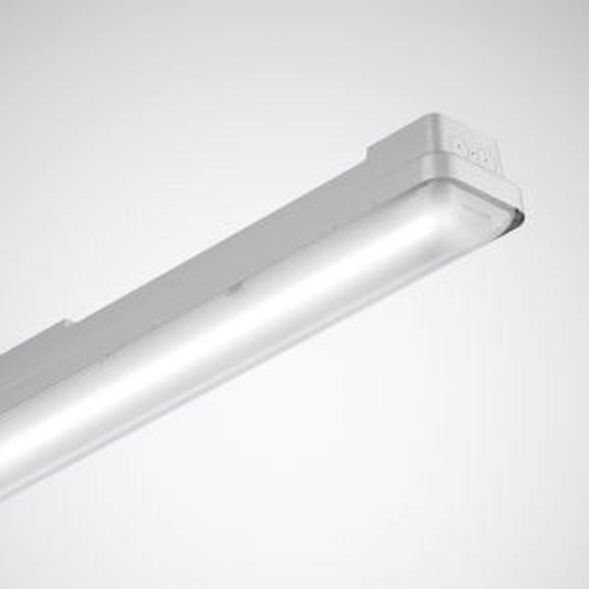

LED damp-proof surface-mounted luminaire IP 66. Advantageous where there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling mounting using the enclosed stainless steel fastening clip. Suspended mounting possible using optional accessories. Cover made of opal, translucent PMMA with an internal prism structure. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 4000 lm, rated power 28.00 W, luminaire luminous efficacy 142 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra> 80. Color tolerance (initial MacAdam) 3 SDCM, the light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.6 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. LiveLink SwarmSens master luminaire with integrated HF sensor for motion detection in combination with a brightness sensor for daylight detection and Bluetooth module for networking up to 4096 LiveLink SwarmSens master and slave luminaires in a mesh network. Commissioning is carried out either with DIP switches and rotary potentiometers on the sensor or via the LiveLink SwarmSens smartphone app. Range of the Bluetooth® signal up to 15 m. Integrated HF sensor in the 24 GHz frequency range for detecting movements at speeds between 1 and 25 km/h, adjustable in 10 steps from 30 seconds to 60 minutes. Detection range max. 10 m in diameter with a maximum installation height of 5 m. Brightness sensor for daylight detection adjustable in 9 brightness levels as a threshold switch or permanently deactivated. Basic light function when absent with 10% residual lighting via DIP switch or freely selectable via app. Group assignment of the lights is carried out via DIP switch (64 groups) or smartphone app (255 groups). Configuration of a swarm function of the existing light groups for a leading light via the app. The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 28 W |
| Rated luminous flux according to IEC 62722-2-1: | 4000 lm |
| Suitable for number of lamps: | 1 |
| Length: | 1552 mm |
| Width: | 102 mm |
| Height/depth: | 91 mm |
| Protection rating (IP): | IP66 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | gray |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the permanently installed light source: | other |
| Voltage type: | AC/DC |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED not replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 35 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Cover material: | without cover |
| Light distributor: | without |
| Without dimming function: | no |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Grid design: | without |
| DSI dimming: | no |
| With air slots: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming dependent on operating device: | yes |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 143 lm/W |
| Power factor: | 0.97 |
| Number of poles: | 3 |
