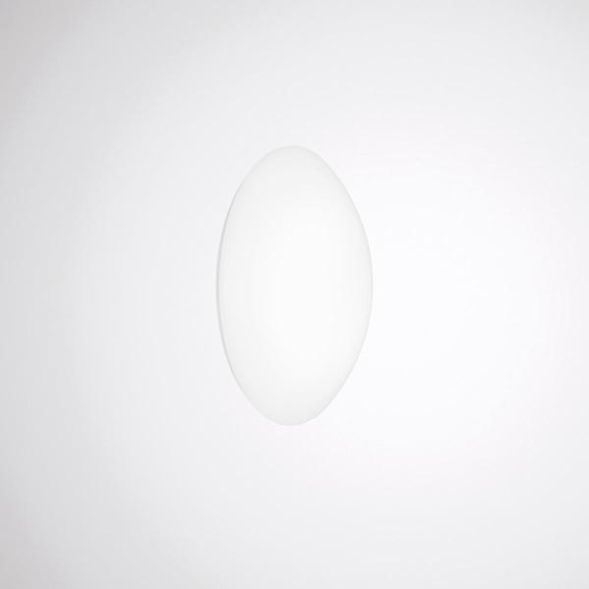

Round LED surface-mounted luminaire with opal, spherically shaped PMMA cover, luminaire diameter 402 mm. The easy-to-install decorative ring is available as an optional accessory in the standard colors and can also be made in customer-specific colors on request. Developed and manufactured in Germany. For wall or ceiling mounting. With diffuse, wide-beam light distribution, mainly direct. With a slight indirect component to brighten the surface. Rated luminous flux 2100 lm, rated power 15.50 W, luminaire luminous efficacy 135 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. Average rated service life L80(tq 25 °C) = 50,000 h, average rated service life L70(tq 25 °C) = 75,000 h. The light source is replaceable in accordance with ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel. Surface coated white (RAL 9016). Diameter of the cover Ø 402 mm, luminaire height 110 mm. Permissible ambient temperature (ta): - +25 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP40, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 0.8 kg. The connection is made using a plug-in terminal with mains forwarding equipment. With electronic control gear, switchable. The control gear is replaceable in accordance with ecodesign requirements (Regulation (EU) 2019/2020). The product meets the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
| Property | Value |
| Max. System power: | 15.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 2100 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 110 mm |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK03 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | yes |
| Outer diameter: | 402 mm |
| Energy efficiency class of the permanently installed light source: | other |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 0 °C |
| Socket: | other |
| Connection type: | plug-in terminal |
| With operating device: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Without dimming function: | yes |
| Light emission: | direct/indirect |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | electronic transformer |
| Suitable for recessed mounting: | no |
| Light colour: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for Surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| DMX dimming: | no |
| DSI dimming: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 75000 h |
| Protection class (NEMA): | other |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 135 lm/W |
| Power factor: | 0.9 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
