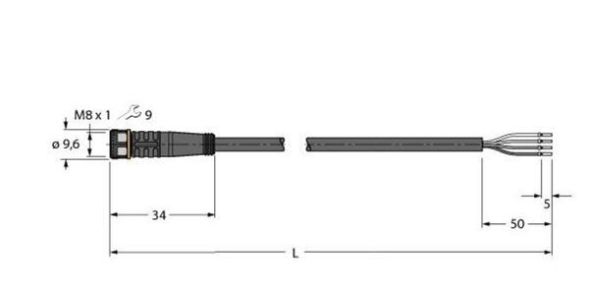

Actuator, sensor and supply cable / PUR, connecting cable, M8 coupling, straight, 4-pin, cable length: 5.0 meters, sheath material: PUR, sheath color: black, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67
| Property | Value |
| Rated current In: | 4 A |
| Color of the cable sheath: | black |
| With LED display: | no |
| Material of the Cable sheath: | Polyurethane (PUR) |
| Material of the contact base body: | CuZn |
| Number of poles: | 4 |
| Connection, housing side: | M8 |
| Plug housing: | Female (socket) |
| Cable feed, housing side: | straight |
| Cable length: | 5 m |
| Shielded: | no |
| Material of the contact coating: | Gold |
| Permissible external cable temperature after installation without vibration: | -50 to 80 °C |
| Permissible external cable temperature during installation/handling: | -25 to 80 °C |
Features
Shielded
No
HAB
PKG4M-5/TXL M8 4-pin straight black 5m
Manufacturer
HAN
6625554
GTIN
4047101273045
Rated current In
4 A
Cable length
5 m
With LED display
No
Number of poles
4
