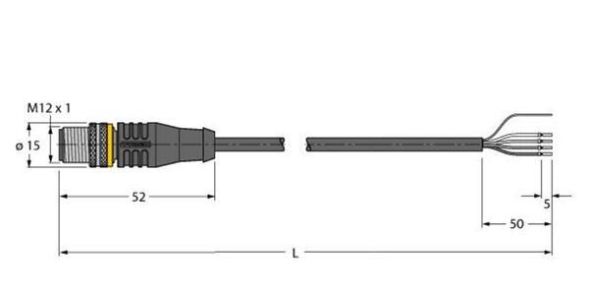

Actuator and sensor cable / PUR, connecting cable, M12 connector, straight, 4-pin, shield applied to union nut/screw, cable length: 10 meters, jacket material: PUR, shielded, jacket color: black, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67
| Property | Value |
| Rated current In: | 4 A |
| Color of the cable jacket: | black |
| With LED display: | no |
| Cable sheath material: | Polyurethane (PUR) |
| Contact body material: | CuZn |
| Number of poles: | 4 |
| Connection, housing side: | M12 |
| Plug housing: | Male (plug) |
| Cable feed, housing side: | straight |
| Cable length: | 10 m |
| Contact coating material: | Gold |
| Permissible external cable temperature after installation without vibration: | -50 to 80 °C |
| Permissible external cable temperature during installation/handling: | -25 to 80 °C |
| Rated voltage: | 250 V |
Features
HAB
RSS4.4T-10/TXL
Manufacturer
HAN
6626341
GTIN
4047101301717
Rated voltage
250V
Rated current In
4 A
Cable length
10m
With LED display
No
Number of poles
4
