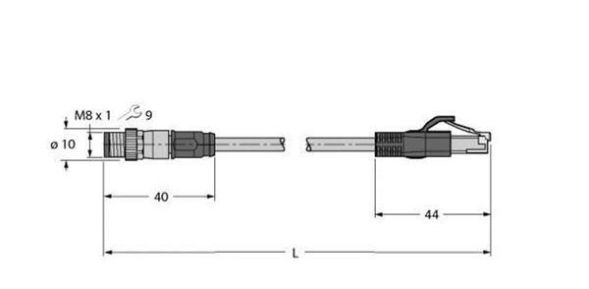

Cable for Industrial Ethernet, PUR cable sheath, M8 connector, straight, Ethernet cable: 4-pin, AWG 26, CAT 5E in accordance with ISO/IEC 11801, EN 50173, EIA/TIA 568-A, sheath material: PUR, sheath color: green, shield: polyester film aluminum laminated, copper braid, sheath diameter: 4.8 mm, suitable for drag chains, UV-resistant, oil-resistant in accordance with IEC 60811-2-1 and DIN0282 Part 10, silicone-, PVC- and LABS-free, halogen-free in accordance with IEC 60754-2, flame-retardant in accordance with IEC 60332-1-2, approval: cULus, RoHS-compliant, protection class IP67, cable length 4m, RJ45 connector, straight, 4-pin
| Property | Value |
| Rated current In: | 1.5 A |
| Ambient temperature: | -40 to 80 °C |
| Housing material: | Plastic |
| Pollution level: | 3 |
| Rated voltage: | 42 V |
| Contact plating material: | Gold |
| Housing design: | straight |
| Protection class (IP), mounted: | IP67 |
| Contact type: | Pin |
Features
HAB
PSGS4M-RJ45S-4414-4M
Manufacturer
HAN
6933006
GTIN
4047101324112
Rated voltage
42V
Rated current In
1.5A
Ambient temperature
-40 to 80 °C
Degree of contamination
3
Housing material
Plastic
