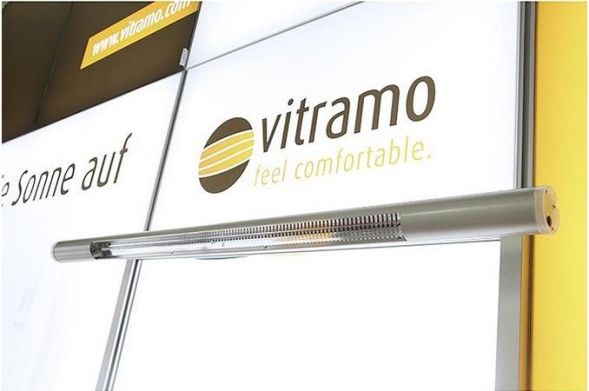

VITRAMO VC-H0900 Heat Tube infrared heater 900W titanium ceiling heater
Heater with a slightly visible glowing heating medium from the VC-H series made of carbon, in the standard color titanium.
The max. source temperature is 1100 °C.
The bright heater is suitable for surface mounting or can be suspended from ropes. The elements are supplied without a power plug and are equipped with a connection cable. The heating elements are supplied without a Schuko plug and may therefore only be installed by a specialist.
Use in enclosed rooms and in three-sided, covered outdoor areas.
Technical data:
Name: VC-H0900
Installation type: Suspended on ropes or surface-mounted on the ceiling
Installation height: At least 1.8 meters from the floor
Dimensions (L x D): 1020 x 55 mm
Included in delivery
:
Rope suspension set with a length of 1500 mm
Weight: 1.6 kg
Voltage: 210-240 VAC / 50 Hz
Power: 900 W
Rated current: 3.9 A
Electrical connection: Connection cable ~2.0 meters 3G1.0
Protection class: I
Protection type: IPx4 when installed horizontally
Packaging: cardboard box
Dimensions: 1000 x 100 x 100 mm
Weight: 2.5 kg
PU: 1 piece
EAN number: 4250939307152
Ecodesign:
Use for occasional use, in enclosed spaces, as well as in covered rooms closed on three sides in particularly protected locations. For eco-design-compliant operation, these devices must be equipped with an external room temperature control (see Vitramo room temperature control).
In the context of 'ecodesign', Vitramo radiant heaters are referred to as radiant heaters with a visibly glowing heating medium. For operation as individual room heating, an annual room heating efficiency of 31% is required for devices with a nominal heat output of up to 1.2 kW and an annual room heating efficiency of 31% is required for devices over 1.2 kW. Since the devices themselves achieve a room heating efficiency of 30%, additional devices for room temperature control (see Vitramo room temperature control) are required for eco-design-compliant operation. The Vitramo room thermostat VTA regulates the VC-H0900 spotlight in accordance with eco-design standards.

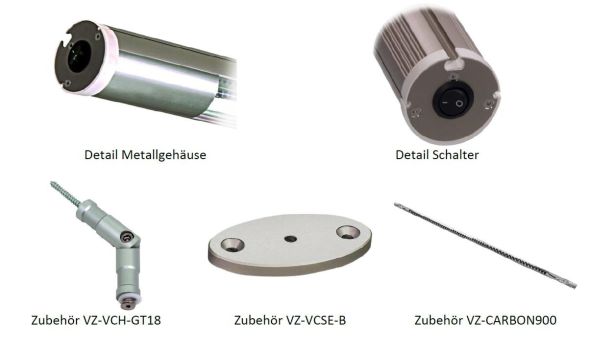

separate accessories:
VITRAMO VZ-VCH-GT18 - 2 x joint with tightening bolt for round profile, dimensions 90 x D18 mm
VITRAMO VZ-VCSE-B - 2 x solid mounting plate, oval, anodized, dimensions 84 x 49 x 8 mm
VITRAMO VZ-carbon900 - replacement tube carbon, 900 watts
| Property | Value |
| Max. Heating output: | 900 W |
| Protection class (IP): | IPX4 |
| Height: | 55 mm |
| Width: | 1020 mm |
| Depth: | 55 mm |
| Number of heating levels: | 1 |
| Min. Heating power: | 900 W |
| Power level OFF: | no |
| Voltage: | 220 to 240 V |
| Installation above changing table: | yes |
| Design: | Ceiling/wall spotlight |
