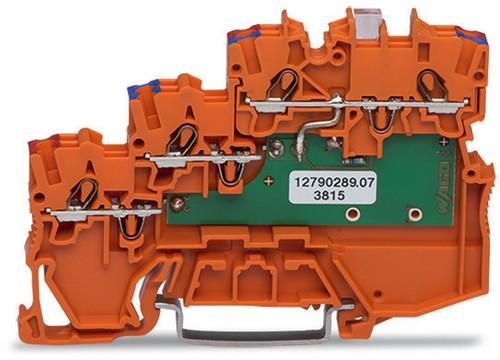

3-conductor initiator feed terminal, green LED, 1 mm², Push-in CAGE CLAMP®, 1.00 mm², orange
| Property | Value |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.5 to 0.75 mm² |
| Connectable conductor cross-section, single-stranded: | 0.5 to 1.5 mm² |
| Color of the lamp: | green |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.14 to 1.5 mm² |
| Rated current In: | 13.5 A |
| Connectable conductor cross-section, stranded: | 0.14 to 1 mm² |
| Operating temperature: | 105 °C |
| Color: | orange |
| Rated voltage: | 24 V |
| Number of levels: | 3 |
| Connection: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | yes |
| LED switching for: | no |
| With PE connection: | no |
| With shield connection: | no |
| With feed-in function: | yes |
| Number of terminal points per Level: | 2 |
| Levels internally bridged: | no |
| Cross-connectable: | yes |
| Separation function: | no |
| Explosion-tested version Ex e: | no |
| Material of the insulating body: | Thermoplastic |
| Width: | 7 mm |
| Height: | 81.1 mm |
| Depth: | 52.4 mm |
Features
Color of the lamp
Green
Minimal order
15 pcs
Manufacturer
HAN
2000-5372/1102-953
GTIN
4055143452335
Connectable conductor cross-section solid
0.5 to 1.5 mm²
Connectable conductor cross-section stranded
0.14 to 1 mm²
Rated voltage
24V
Rated current In
13.5A
Operating temperatur
105°C
Width
7 mm
Color
Height
81.1 mm
Mounting type
DIN rail TH35
Depth
52.4 mm
