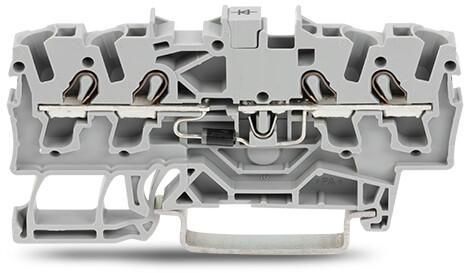

Component terminal, 4 conductors, with diode 1N4007, anode left, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², gray
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.75 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Connection position: | top |
| Rated current In: | 0.5 A |
| Operating temperature: | 105 °C |
| Rated voltage: | 250 V |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of levels: | 1 |
| Number of terminal points per level: | 4 |
| Levels bridged internally: | no |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| Width/grid dimension: | 5.2 mm |
| Height with lowest mounting type: | 33 mm |
| Length: | 70 mm |
| End plate required: | yes |
| Color: | gray |
| Component type: | Diode |
| Explosion-tested version 'Ex e': | no |
| Material of the insulating body: | Thermoplastic |
Features
HAB
4 conductors
Minimal order
100 pcs
Manufacturer
HAN
2002-1411/1000-410
GTIN
4045454536329
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
250V
Rated current In
0.5A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Length
70 mm
Mounting type
DIN rail TH35
