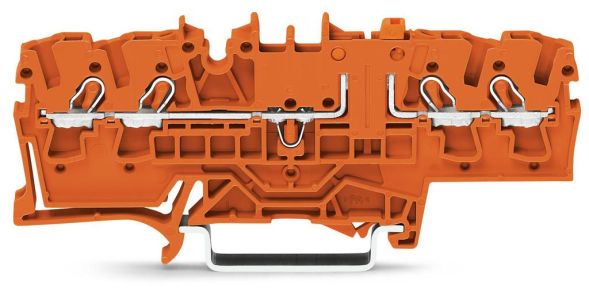

4-conductor isolating and measuring terminal, with testing option, isolating blade holder orange, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², orange
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Connectable conductor cross-section, stranded without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, finely stranded with wire end ferrule: | 0.75 to 2.5 mm² |
| Rated current In: | 16 A |
| Operating temperature: | 105 °C |
| Rated voltage: | 400 V |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of levels: | 1 |
| Number of terminal points per level: | 4 |
| Levels bridged internally: | no |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Color: | orange |
| Design of the longitudinal separation: | without |
| Design of the transverse separation: | without |
| With integrated test socket: | no |
| Material of the insulating body: | Thermoplastic |
Features
HAB
4 conductors
Minimal order
50 pcs
Manufacturer
HAN
2002-1872
GTIN
4045454974862
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
400V
Rated current In
16A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
