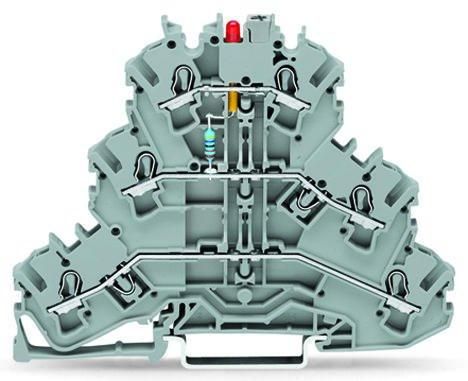

Component terminal, three-level, red LED, DC 24 V, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², gray
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.75 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Connection position: | top |
| Rated current In: | 0.025 A |
| Operating temperature: | 105 °C |
| Rated voltage: | 24 V |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of Levels: | 3 |
| Number of terminal points per level: | 2 |
| Levels internally bridged: | no |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| Width/grid dimension: | 5.2 mm |
| Height with lowest mounting type: | 69.5 mm |
| Length: | 93.5 mm |
| End plate required: | yes |
| Color: | gray |
| Component type: | LED |
| Explosion-tested version 'Ex e': | no |
| Material of the insulating body: | Thermoplastic |
Features
HAB
2002-3221/1000-413
Minimal order
50 pcs
Manufacturer
HAN
2002-3221/1000-413
GTIN
4045454375768
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
24V
Rated current In
0.025A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Length
93.5 mm
Mounting type
DIN rail TH35
