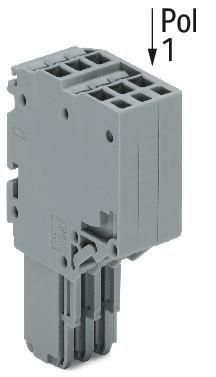

2020-214 2L-FEDERLeis. O.BR. 14-P
| Property | Value |
| Number of poles: | 14< /td> |
| Rated voltage: | 500 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 13.5 A |
| Color: | grey |
| Operating temperature: | 105 °C |
| QS fine-stranded: | 0.14 to 1.5 mm² |
| QS single-wire: | 0.5 to 1.5 mm² |
| QS multi-wire: | 0.14 to 1 mm² |
| QS wire end ferrule: | 0.5 to 0.75 mm² |
| Mounting type : | other |
| Design of electrical connection 1: | spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminals per pole: | 2 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required:< /td> | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 49.7 mm |
| Height: | 25 mm |
| Depth: | 40.5 mm |
