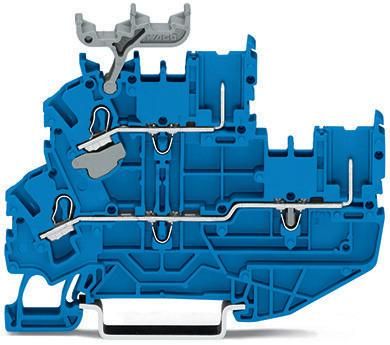

1-conductor/1-pin double-level base terminal, feed-through/feed-through terminal, 2.5 mm², N/N, without label carrier, suitable for Ex i applications, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², blue
| Property | Value |
| Color: | blue |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Rated voltage: | 690 V |
| Number of levels: | 2 |
| Number of terminal points per level: | 2 |
| Rated current In: | 24 A |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.75 to 2.5 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Plug-in connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
Features
HAB
2022-2204
Minimal order
50 pcs
Manufacturer
HAN
2022-2204
GTIN
4055143265775
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
690V
Rated current In
24A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
