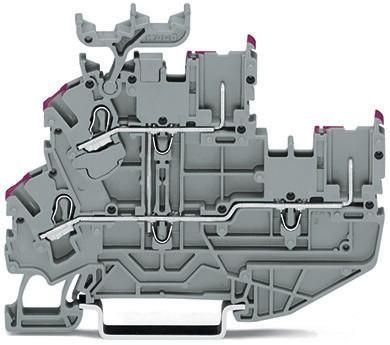

2-conductor/2-pin double-level base terminal, 2-conductor/2-pin feed-through terminal, 2.5 mm², L, internally bridged, conductor entry printed in violet, suitable for Ex nA applications, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², gray
| Property | Value |
| Color: | gray |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Rated voltage: | 630 V |
| Number of levels: | 2 |
| Number of terminal points per level: | 2 |
| Rated current In: | 20 A |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.75 to 2.5 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Plug-in connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Levels bridged internally: | yes |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | yes |
Features
HAB
2022-2238/999-953
Minimal order
50 pcs
Manufacturer
HAN
2022-2238/999-953
GTIN
4055143299404
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
630V
Rated current In
20A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
