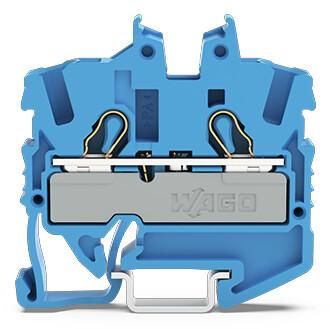

2-conductor mini feed-through terminal, with actuation opening, 2.5 mm², with test opening, side and center labeling, for DIN rail 15, Push-in CAGE CLAMP®, 2.50 mm², blue
| Property | Value |
| Color: | blue |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.25 to 4 mm² |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Rated voltage: | 800 V |
| Number of levels: | 1 |
| Number of terminal points per level: | 2 |
| Rated current In: | 24 A |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 0.75 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.75 to 2.5 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | yes |
Features
HAB
Mini Push-in CAGE CLAMP 2.50qmm blue
Manufacturer
HAN
2052-1204
GTIN
4055144094503
Connectable conductor cross-section solid
0.75 to 4 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Rated voltage
800V
Rated current In
24A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
