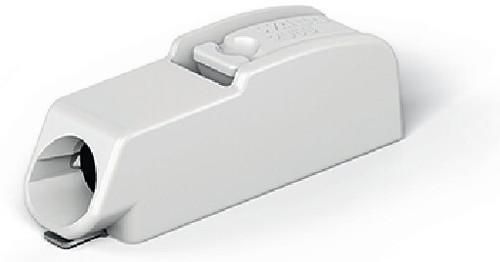

SMD PCB terminal, push-button, 0.75 mm², pitch 4 mm, 1-pole, Push-in CAGE CLAMP®, in tape, 0.75 mm², white
| Property | Value |
| Number of poles: | 1 |
| Rated voltage: | 160 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 9 A |
| Color: | white |
| Operating temperature: | -60 to 105 °C |
| QS fine-stranded: | 0.2 to 0.75 mm² |
| QS single-stranded: | 0.2 to 0.75 mm² |
| QS multi-stranded: | 0.2 to 0.75 mm² |
| QS wire end ferrule: | 0.25 to 0.34 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL94: | V0 |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Width: | 3.9 mm |
| Height: | 4.5 mm |
| Depth: | 13.1 mm |
