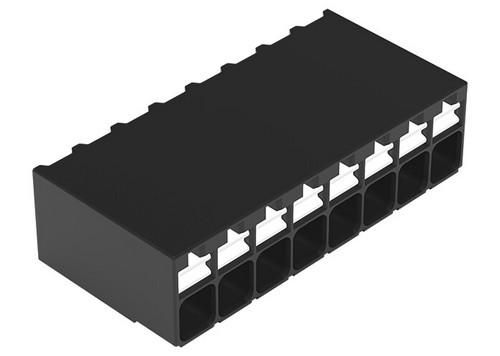

SMD PCB terminal, push-button, 1.5 mm², pitch 3.5 mm, 8-pin, Push-in CAGE CLAMP®, 1.50 mm², black
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.14 to 1.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.25 to 1.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.14 to 1.5 mm² |
| Connectable conductor cross-section stranded: | 0.14 to 1.5 mm² |
| Conductor connection type: | Spring-loaded connection |
| PCB connection type: | Solder connection |
| Number of electrical connections: | 8 |
| Number of levels: | 1 |
| Type of banding: | without |
| Type of PCB fastening: | Connection contact |
| Fastening type: | soldering |
| Rated voltage: | 160 V |
| Rated impulse voltage: | 2.5 kV |
| Rated current In: | 17.5 A |
| Operating temperature: | -60 to 105 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Housing color: | black |
| Height: | 15.1 mm |
| Length of Pins: | 1.5 mm |
| Connection pitch: | 3.5 mm |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Connection surface material: | Tin |
| Insulating body material: | Thermoplastic |
| Angle circuit board/conductor connection: | 0°/180° (horizontal) |
Features
Rated surge voltage
2.5 kV
Minimal order
2060 pcs
Manufacturer
HAN
2086-1208/700-000/997-607
GTIN
4066966159967
Connectable conductor cross-section solid
0.14 to 1.5 mm²
Connectable conductor cross-section stranded
0.14 to 1.5 mm²
Mounting type
Soldering
Rated voltage
160V
Rated current In
17.5A
Operating temperatur
-60 to 105 °C
Housing color
Black
Height
15.1 mm
Degree of contamination
2
Overvoltage category
III
