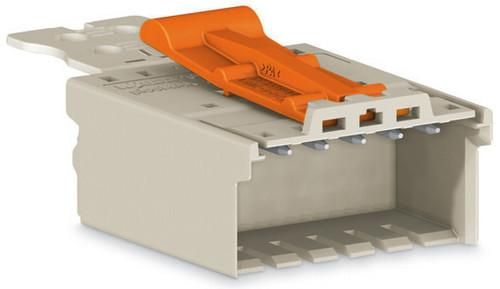

1-conductor pin header, Push-in CAGE CLAMP®, 1.5 mm², pitch 3.5 mm, 10-pin, handle plate, directly printed, 1.50 mm², light gray
| Property | Value |
| Number of poles: | 10 |
| Rated voltage: | 160 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 10 A |
| Color: | gray |
| Operating temperature: | -60 to 100 °C |
| QS fine-stranded: | 0.2 to 1.5 mm² |
| QS single-stranded: | 0.2 to 1.5 mm² |
| QS multi-stranded: | 0.2 to 1.5 mm² |
| QS wire end ferrule: | 0.25 to 0.75 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Width: | 3.5 mm |
| Height: | 15.9 mm |
| Depth: | 44 mm |
