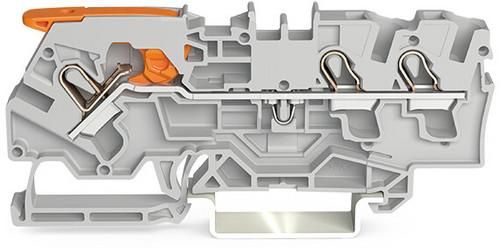

3-conductor feed-through terminal, with lever and Push-in CAGE CLAMP®, 4 mm², with test opening, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 4.00 mm², gray
| Property | Value |
| Color: | gray |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.5 to 6 mm² |
| Connectable conductor cross-section, stranded: | 0.5 to 4 mm² |
| Rated voltage: | 800 V |
| Number of levels: | 1 |
| Number of terminal points per level: | 3 |
| Rated current In: | 32 A |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 1.6 mm² |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.75 to 2.5 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Electrical connection design 2: | Spring-loaded connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | yes |
Features
HAB
Lever Push-in CAGE CLAMP® 2.5qmm grey
Minimal order
50 pcs
Manufacturer
HAN
2104-1301
GTIN
4055143992442
Connectable conductor cross-section solid
1.6 mm²
Connectable conductor cross-section stranded
0.5 to 4 mm²
Rated voltage
800V
Rated current In
32 A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
