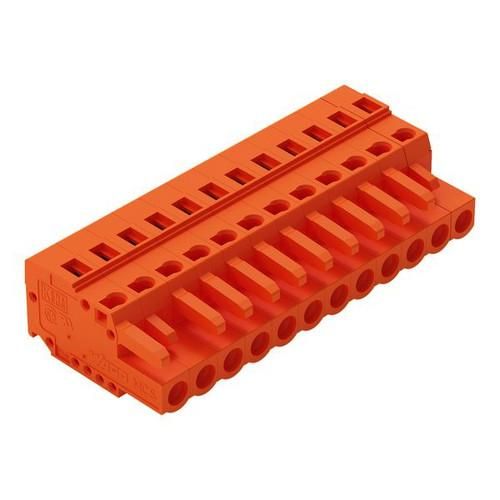

1-conductor female connector, CAGE CLAMP®, 2.5 mm², pitch 5.08 mm, 10-pin, with integrated end plate, 2.50 mm², orange
| Property | Value |
| Connectable cable type: | Round cable |
| Connectable conductor cross-section, single-wire: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.25 to 21.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, stranded: | 0.08 to 2.5 mm² |
| Number of plug contact rows: | 1 |
| Design of the electrical connection: | Spring-loaded connection |
| Rated voltage: | 320 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 16 A |
| Operating temperature: | -60 up to 85 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Housing color: | orange |
| Contact design: | socket |
| With protective conductor: | no |
| Pitch of the connections: | 5.08 mm |
| Pitch of the contacts: | 5.08 mm |
| Degree of protection (IP), mounted: | IP20 |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Material of the contact coating: | Tin |
| Material of the housing: | Plastic |
| Material of the insulation body: | Thermoplastic |
| Material of the contact: | Other copper alloys |
| Angle of contact/conductor connection: | 180° (horizontal) |
| Type of connection: | PCB to Cable |
| Number of poles: | 10 |
| Housing coating: | uncoated |
Features
Rated surge voltage
4 kV
Minimal order
50 pcs
Manufacturer
HAN
231-310/102-000
GTIN
4044918348218
Connectable conductor cross-section solid
0.08 to 2.5 mm²
Connectable conductor cross-section stranded
0.08 to 2.5 mm²
Design of the electrical connection
Spring-loaded connection
Rated voltage
320V
Rated current In
16A
Housing coating
Uncoated
Operating temperatur
-60 to 85 °C
Housing color
Orange
Number of poles
10
Connection type
PCB to cable
Degree of contamination
2
Housing material
Plastic
Overvoltage category
III
