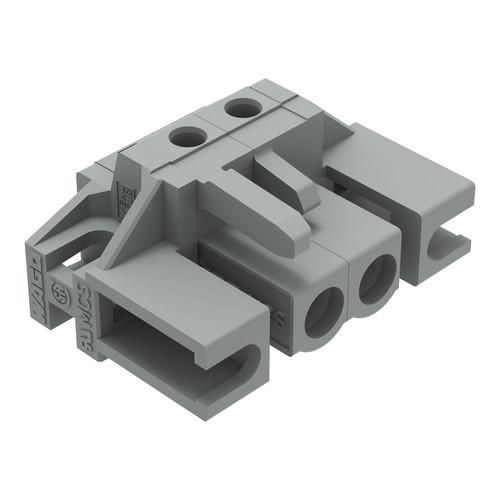

THT female connector, angled, pitch 5 mm, 2-pin, spacer flange, solder pin 0.6 x 1.0 mm, gray
| Property | Value |
| Number of plug contact rows: | 1 |
| Type of banding: | without |
| Type of PCB mounting: | Connection contact |
| Design of the electrical connection: | Solder connection |
| Mounting type: | soldering |
| Rated voltage: | 320 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 12 A |
| Operating temperature: | -60 to 85 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Suitable for circuit board thickness: | 1.5 mm |
| Housing color: | gray |
| Contact design: | pin |
| Length of pin: | 5 mm |
| Pitch of connections: | 5 mm |
| Pitch of contacts: | 5 mm |
| Connector design: | free connector |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Material of contact coating: | tin |
| Material of insulating body: | thermoplastic |
| Angle circuit board/contact: | 0°/180° (horizontal) |
| Connection type: | flexible circuit board connector |
| Number of poles: | 2 |
Features
Rated surge voltage
4 kV
Minimal order
100 pcs
Manufacturer
HAN
232-232/047-000
GTIN
4044918624510
Design of the electrical connection
Solder connection
Mounting type
Soldering
Rated voltage
320V
Rated current In
12A
Operating temperatur
-60 to 85 °C
Housing color
Gray
Number of poles
2
Connection type
Flexible circuit board connector
Degree of contamination
2
Overvoltage category
III
