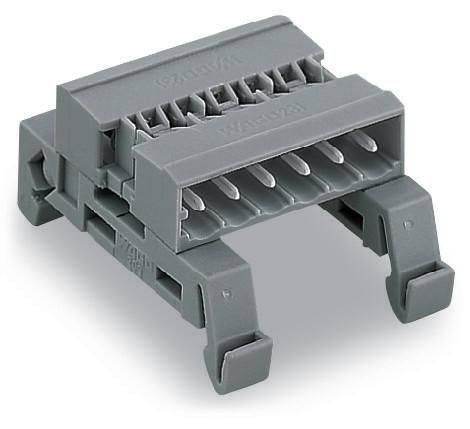

Connection pin strip, TS-35 mounting, 10-pin, pitch 5 mm, gray
| Property | Value |
| Number of poles: | 10 |
| Rated voltage: | 320 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 12 A |
| Color: | gray |
| Operating temperature: | -60 to 100 °C |
| Mounting type: | DIN rail TH35 |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Width: | 5 mm |
| Height: | 6.5 mm |
| Depth: | 42.5 mm |
